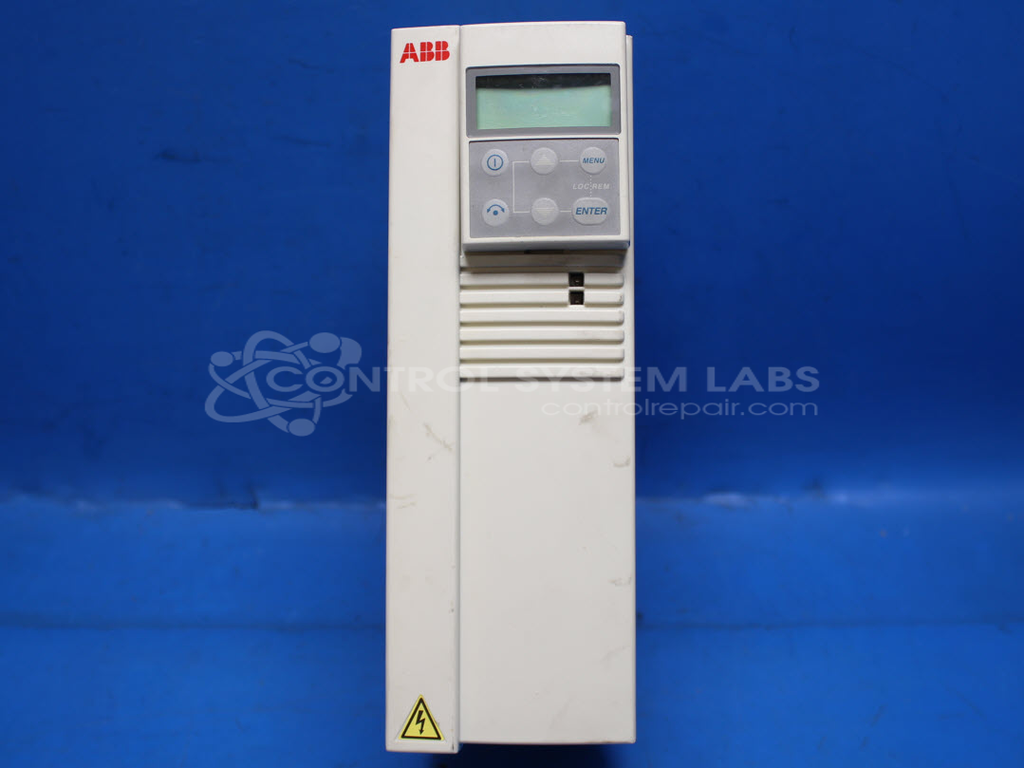

ABB ACS-143-4K1-3 W/KEYPAD ACS 140 4.9AMP AC Drive

Repair

Repair Price: $ 668.00

Repair Now

Purchase

https://controlrepair.com/web/image/product.template/47100/image_1920?unique=c03d57e
  • Condition

Purchase Price: $ 0.00 $ 0.00 668.0 USD

$ 0.00

This combination does not exist.

Add to Cart

CSL Part Number: 28195
Category: AC Motor Controls
Manufacturer: ABB
Manufacturer Synonyms: ASEA BROWN BOVERI
Alternate Manufacturer Names: ABB Drives
Manufacturer Part Number: ACS-143-4K1-3 W/KEYPAD
Series: ACS 140 Series AC Drive
Other Synonyms: ABB Drives

Common Failures

Customers have reported issues such as the absence of a green indicator light, no keypad display, and lack of outputs. These symptoms often accompany an Error FL15, indicating an output ground fault that cannot be reset.

Repair Approach

Initial repair attempts included restoring damaged traces and replacing electrolytic capacitors. However, persistent errors pointed towards a suspected issue with the CPU board and potentially damaged power supply traces near the CPU.

Testing & Quality

The device was powered on for testing, and settings were verified as correct. Despite resetting the drive to default settings, the error remained unresolved. Subsequent evaluations concluded that repairing the unit was Beyond Economic Repair (BER).

Service and repair your broken ABB part


We can repair your ABB model ACS-143-4K1-3 W/KEYPAD in our facility. Let our skilled technicians get your ABB back in operation quickly.


Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.

Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.

Step 3 - Ship or mail the box to the address listed on the RMA.
