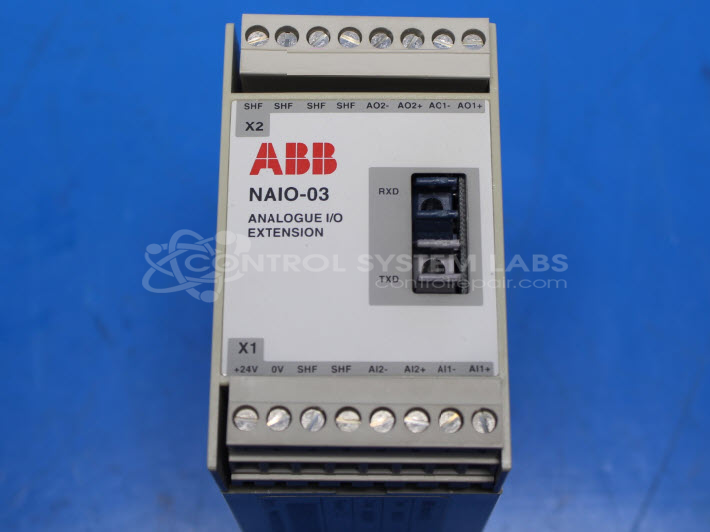

ABB NAIO-03 Analog I/O Extension Module
Repair
Repair Price: $ 948.00
Purchase
CSL Part Number: 84566
Product Overview: An analog I/O extension module that expands the analog input and output capability of industrial variable speed motor drives. It connects to the drive via an optical fiber interface and is used in paper mills and other process control applications requiring additional analog signal channels.
Category: Control Assembly
Manufacturer: ABB
Manufacturer Synonyms: ASEA BROWN BOVERI
Manufacturer Part Number: NAIO-03
Common Failures
During evaluation, defective capacitors were identified in multiple units. Two capacitors were found to be contributing factors in operational issues observed.
Repair Approach
The repair process involved disassembling the unit and testing capacitors. Replacement of the identified capacitors was performed. Voltage comparisons before and after replacement were conducted as part of the repair verification process.
Testing & Quality
Post-repair testing included voltage measurements and connection verification between analog inputs and outputs. Full functional testing was limited due to the requirement for an optical interface with a motor drive, which was not available during testing. The units were tested to the extent possible with available equipment.
Service and repair your broken ABB part
We can repair your ABB model NAIO-03 in our facility. Let our skilled technicians get your ABB back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
