Repair Price: $ 716.00
Purchase
CSL Part Number: 66892

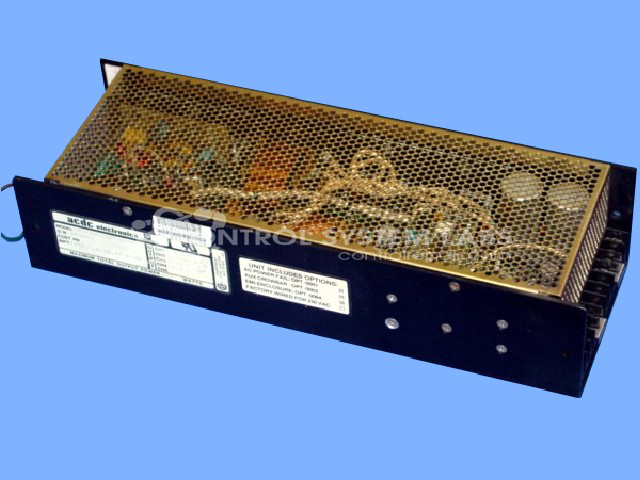

Product Overview: The acdc Electronics RM224B-2339-0067 (also sold under the ASTEC brand) is a quad output switching power supply providing 5V at 25A, 12V at 4A, 12V at 3A, and 24V at 3A. It delivers multiple voltage rails simultaneously, making it suitable for industrial control systems, automation equipment, and instrumentation that require diverse DC voltages from a single compact supply.
Category: Power Supply
Manufacturer: acdc Electronics
Manufacturer Part Number: RM224B-2339-0067
Also Known As(AKA): ASTEC
5V@25amp 12V@4amp 12V@3amp 24V@3Amp
Common Failures
Units commonly exhibit voltage losses at 5 volts and 12 volts. This issue may also be accompanied by coil whine noise when there is excessive loading on the 5-volt output.
Repair Approach
Repairs often involve replacing capacitors that are no longer performing adequately. This may include replacing capacitors on a replacement unit and merging it with the customer's original case to maintain the original serial number. Tightening of case screws and ensuring all components are secure is also performed as needed.
Testing & Quality
Repaired units undergo testing, including a 4-hour burn-in test at 80% programmable load. Further testing at varied output ranges from 10% to 80% ensures that the power supply functions correctly across expected operational conditions. Each unit is inspected to verify the correction of any assembly issues.
Service and repair your broken acdc Electronics part
We can repair your acdc Electronics model RM224B-2339-0067 in our facility. Let our skilled technicians get your acdc Electronics back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
