Repair
Repair Price: $ 752.00
Purchase
CSL Part Number: 49633

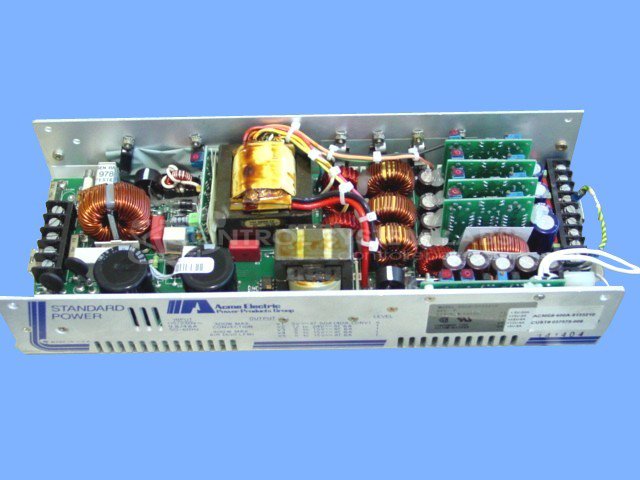

Product Overview: The Standard Penta Power Supply (Acme Electric 400A-9142210) is a multi-output switching power supply that delivers five regulated DC voltage rails: +5V at 50A, +15V at 6A, -15V at 6A, +12V at 6A, and +5V at 6A. It uses an SG3525 PWM controller for voltage regulation and is commonly found in industrial control systems, process automation equipment, and manufacturing machinery where multiple logic and analog voltage levels are required simultaneously.
Category: Power Supply
Manufacturer: Acme Electric
Manufacturer Synonyms: Hubbell
Manufacturer Part Number: 400A-9142210
Series: Penta Power Supply
Common Failures
Typical issues for this product include missing power at specific voltages and the 5V output dropping under load. These problems are often linked to defective components such as capacitors, diodes, and integrated circuits.
Repair Approach
The repair process generally involves replacing faulty components. In some cases, cleaning with compressed air to remove dust and other accumulations that may lead to overheating is also necessary. Adjusting and resetting voltages to factory specifications can further help restore proper functioning.
Testing & Quality
Repairs are verified through a thorough test sequence, including a burn-in process with a load to ensure reliability. Additionally, voltage settings are checked and recalibrated according to the unit's factory specifications to confirm proper operation. In situations where no failure is detected, units undergo reassessment to confirm all systems are functioning as expected.
Service and repair your broken Acme Electric part
We can repair your Acme Electric model 400A-9142210 in our facility. Let our skilled technicians get your Acme Electric back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
