Repair
Repair Price: $ 2,104.00
Purchase
CSL Part Number: 74750

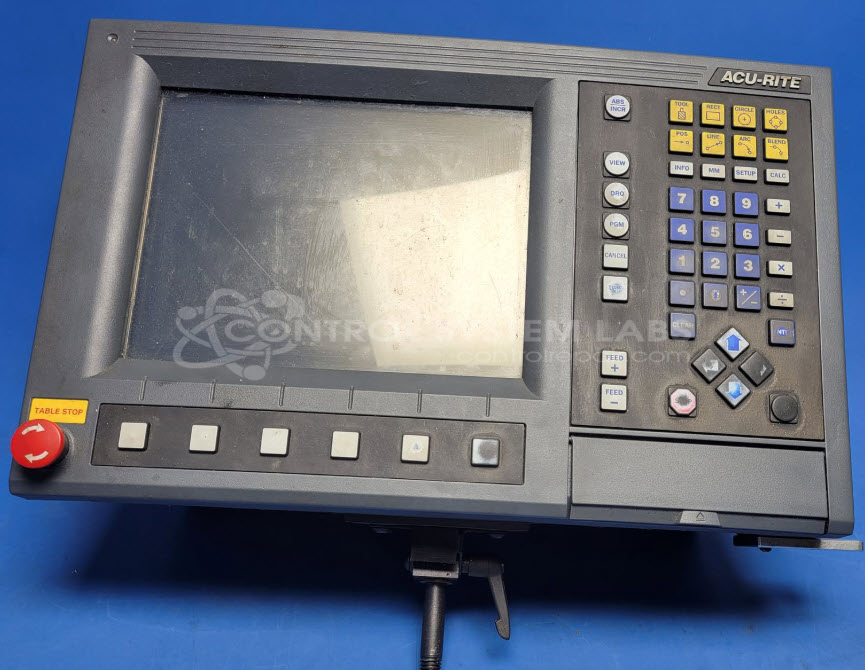

Product Overview: The ACU-RITE MP2 Operator Console is a digital readout (DRO) controller for the MILLPWR 2 CNC system. It integrates a 10.4-inch LCD display, membrane keypad, and internal power supply to provide machine position monitoring and control for milling machines and similar machining equipment. The console processes encoder inputs from machine axes, allows manual table positioning, program execution, and diagnostic functions. Common configurations include a 3.5-inch floppy drive (upgradeable to USB) and battery-backed memory for program storage. Typical failures include power supply electrolytic capacitors (particularly C17 and C20), LCD screen degradation, keypad button wear, and connector issues.
Category: Operator & Control Panels
Manufacturer: ACU-RITE
Manufacturer Synonyms: HEIDENHAIN, ACU RITE

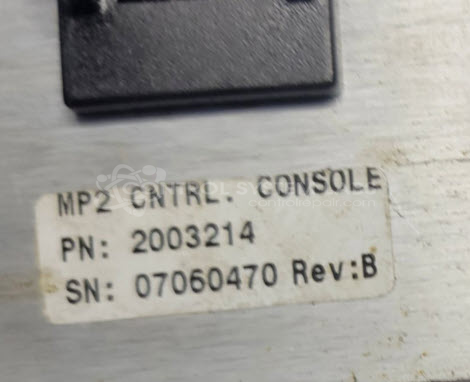

Manufacturer Part Number: 2003214
Series: MILLPWR 2 Control Readout System
Also Known As(AKA): MP2
We offer screen replacement, button repairs and power supply repair. We can also upgrade your floppy drive to a USB. We do not offer repair for the associated scales for this DRO.
Common Failures
Common issues reported with this product include keypad malfunctions, inconsistent power-ups, display issues such as ghosting or discoloration, erratic servo movements, and power supply failures. Users have noted problems with encoders not registering movement and physical damage to bezels, which may occur during shipping.
Repair Approach
Repairs typically involve replacing defective components such as electrolytic capacitors, keypads, and damaged connectors. Circuit board repair and soldering are conducted when necessary. In cases of cosmetic damage, bezels and faceplates may be repaired or replaced. Systems are also cleaned to ensure optimal function.
Testing & Quality
Each repaired unit undergoes diagnostic testing, including checking electronic components, verifying input and output functionality, and validating keypad operation. Testing is conducted to evaluate stability and reliability post-repair. Units are tested according to CSL testing criteria to validate repair effectiveness.
Service and repair your broken ACU-RITE part
We can repair your ACU-RITE model 2003214 in our facility. Let our skilled technicians get your ACU-RITE back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
Shipping Info:
In our experience this item is more likely than others to arrive damaged. It should be wrapped in 4-6 inches of bubble wrap or foam, covered on all sides.
