Repair
Repair Price: $ 692.00
Purchase
CSL Part Number: 82787

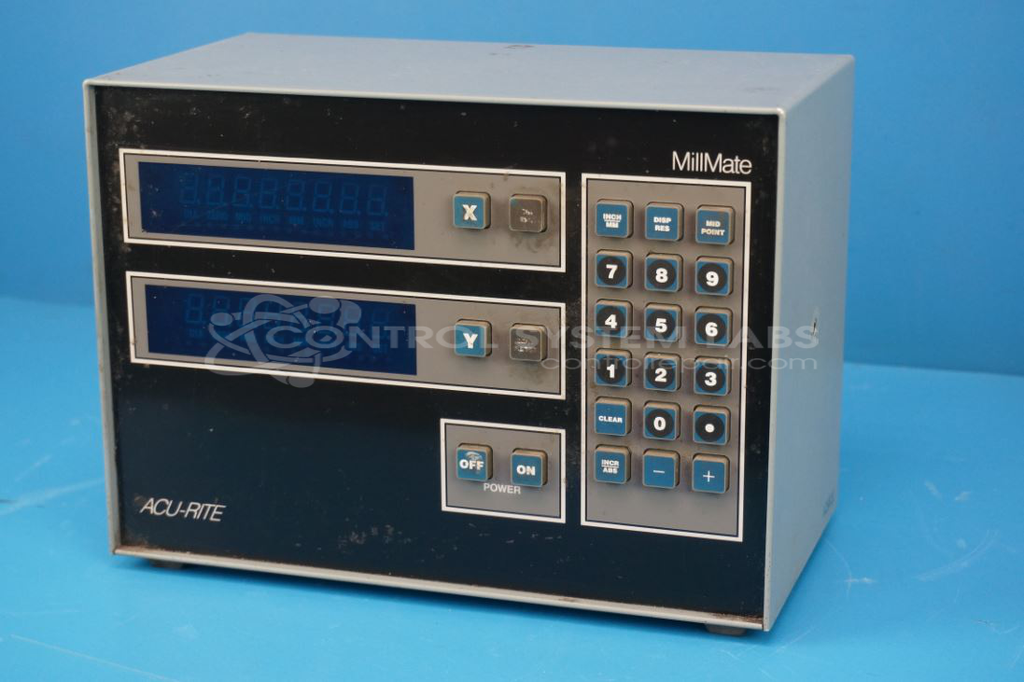

Product Overview: The MillMate DRO 2 Axis is a digital readout system designed for vertical knee mills. It provides two-axis (X-Y) position measurement and display for milling machine operators. The system uses linear scales to track table movement and displays real-time positional data on a dedicated readout unit. Built around a 16-bit microprocessor architecture with an 8MHz clock generator, it processes encoder signals to deliver precise dimensional feedback during machining operations.
Category: Meters / Gauges / Readouts
Manufacturer: ACU-RITE
Manufacturer Synonyms: HEIDENHAIN, ACU RITE
Manufacturer Part Number: 387575202A DOH
Also Known As(AKA): MILLMATE
Common Failures
Units received for evaluation have exhibited E1 errors, issues recording dimensions on the X and Y axes, and complete failure to power on. Reported symptoms have included processor-related faults, defective preprogrammed chips, and damaged internal keypad connections affecting power delivery.
Repair Approach
Repair efforts typically involve testing and replacing capacitors and integrated circuits as needed. Units are subjected to diagnostic testing to identify the source of failures. In some cases, processor replacement has been performed, and corroded wiring in membrane pads has been identified during evaluation.
Testing & Quality
All units undergo diagnostic testing using methods such as DMM and Huntron analysis. However, certain units have been deemed Beyond Economic Repair due to unavailable replacement parts, including preprogrammed chips and membrane keypads.
Service and repair your broken ACU-RITE part
We can repair your ACU-RITE model 387575202A DOH in our facility. Let our skilled technicians get your ACU-RITE back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
