Repair Price: $ 968.00
Purchase
CSL Part Number: 61614

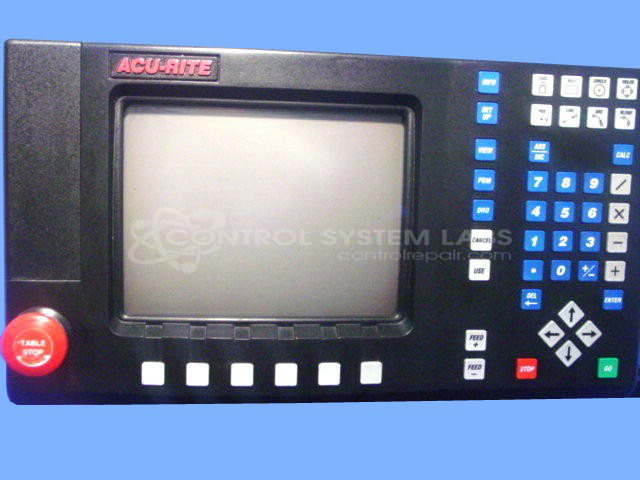

Product Overview: The MILLPWR 1 Operator Console is a CRT-based display and control interface for ACU-RITE milling machine controls. It provides visual feedback and operator input capabilities for CNC machining operations. The unit integrates a cathode ray tube display with embedded power supply circuitry and video processing electronics. It is commonly found on manual mills upgraded with digital readout systems and serves as the primary human-machine interface for position display, setup parameters, and machine control functions.
Category: Operator & Control Panels
Manufacturer: ACU-RITE
Manufacturer Synonyms: HEIDENHAIN, ACU RITE
Manufacturer Part Number: 387900251
Series: MILLPWR 1
Also Known As(AKA): MILLPWR 1
Repair to the CRT display / Power supplies and Keypad only.
Common Failures
Common issues reported include dark displays, image compression, and complete monitor failures. These issues may stem from component wear such as power supply degradation or alignment drift, which can result in distorted or non-functional displays.
Repair Approach
Our repair process typically involves diagnostic testing to identify faulty components, followed by replacement of defective parts such as power supplies and capacitors. For alignment issues resulting in compressed imagery, adjustments to vertical screen size and alignment of tube rings may be performed. Preventative measures can include replacing capacitors on both display boards and power supplies where needed.
Testing & Quality
Units undergo testing including extended burn-in tests and alignment checks to verify proper operation after repair. Testing protocols may include several hours of continuous operation to confirm stability and performance.
Service and repair your broken ACU-RITE part
We can repair your ACU-RITE model 387900251 in our facility. Let our skilled technicians get your ACU-RITE back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
