CSL Part Number: 115716

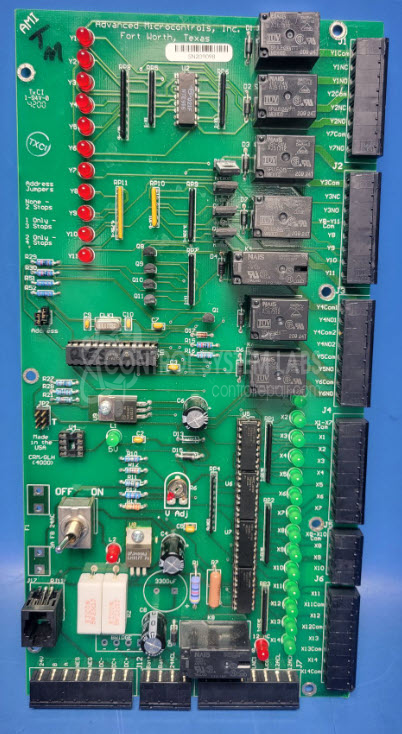

Product Overview: The Advanced Microcontrols PCBRES-01A is a programmable control board designed for machine control applications, commonly used in elevator systems. It features multiple digital inputs (X1-X10) and relay-driven outputs (Y1-Y4, K5) for managing automated sequences and safety interlocks. The board includes opto-isolated input circuitry for electrical isolation, electrolytic capacitors for power conditioning, and trimmer potentiometers for calibration adjustments. It operates on low-voltage DC input signals and switches higher-power loads through onboard relays, making it suitable for controlling actuators, motors, and safety circuits in industrial lifting equipment.
Category: Machine Control
Manufacturer: Advanced Microcontrols, Inc.
Manufacturer Part Number: PCBRES-01A
Include wiring diagrams and information/manuals from the equipment this is from when sending in.
Common Failures
This controller board may exhibit issues where inputs register simultaneously, particularly inputs X8 and X9. This can result in unexpected activation of multiple outputs.
Repair Approach
Repair typically involves replacing defective components such as opto-isolators to ensure that each input triggers only the intended output. Evaluation may also include inspection of relay components and wiring connections that could contribute to the malfunction.
Testing & Quality
After repair, the unit undergoes comprehensive testing to verify correct input-output behavior. Individual input and output functions are assessed to confirm proper performance.
Limited Repair
The Advanced Microcontrols, Inc. part number is only available as a limited repair at our facility. Repairs to this item may be limited due to several reasons:
- Availability of parts
- Less than 100% test ability due to required support equipment
To have us attempt a repair on your Advanced Microcontrols, Inc. part follow these steps:
Step 1 -
Click the Repair Now button above to add the part and complete the RMA form.
Step 2 -
Print the RMA form that is sent to your email, and put it in the box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
After we receive your item, we will perform an inspection and an authorization to repair will be sent for your approval. Work will begin after your authorization is received.
