Repair
Repair Price: $ 1,208.00
Purchase
CSL Part Number: 88446

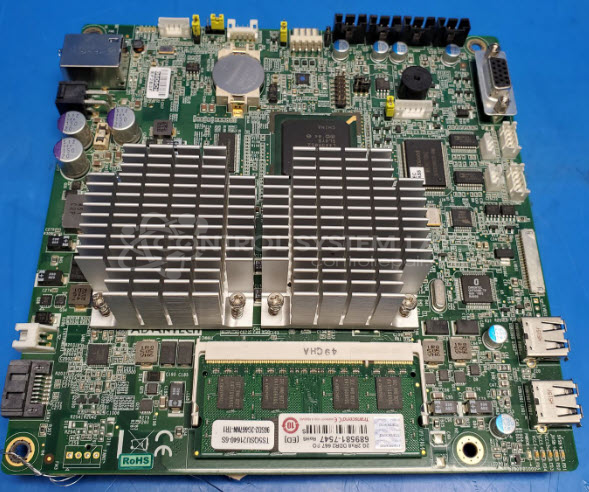

Product Overview: The Frick Quantum Q5 processor board is an industrial single-board computer manufactured by Advantech for use in Frick screw compressor refrigeration systems and industrial chillers. It serves as the main control processor, managing compressor operation, monitoring system parameters, and providing communication interfaces including RS-232, Ethernet, USB, and VGA. The board operates on 12VDC power and uses a compact flash card for program storage. It features multiple voltage rails and includes battery-backed memory for configuration retention.
Category: Chiller Controls
Manufacturer: Advantech
Manufacturer Part Number: 9796BA0602E G1.13
Also Known As(AKA): DAC-BA06-02A2E
Common Failures
Units evaluated by CSL have presented with various symptoms including failure to power up or boot, black display screens, and issues communicating with connected peripherals. Power supply components and battery voltage have been among the findings identified during evaluation.
Repair Approach
Repairs may involve replacement of power supply components or batteries as needed. Communication issues may require replacement of interface components such as RS-232 transceivers. Evaluation typically includes inspection of power connections and verification of communication through available ports such as VGA, Ethernet, and USB.
Testing & Quality
Testing may include extended observation to verify stable power and communication functionality. Testing procedures include checking voltage indicators and communication traffic where applicable. Testing scope may be limited when customer-specific components or peripherals are not available for evaluation.
Repair your broken Advantech part
We can repair your Advantech model 9796BA0602E G1.13 .
Please note: our repair turnaround time may be longer than our standard lead times for this item.
Step 1 -
Click the green button above, "Repair Now," and add to your RMA.
Step 2 -
Print the RMA form that is emailed to you, and put it in a box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
You will be sent an authorization for repair via email. Your approval is needed before any work is started.
