CSL Part Number: 386

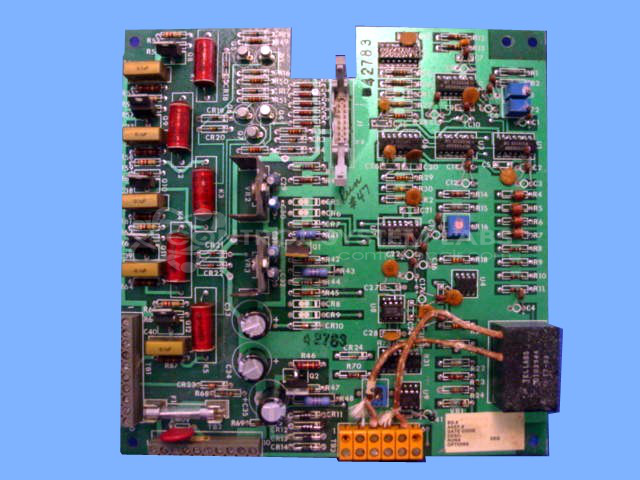

Product Overview: The TDW Control Interface / Power Supply Board is a combined control and power supply module for AEC TDW-1 or TDC-1 series temperature controllers used in paper processing equipment. It manages multiple heating outputs through TRIACs and relays, provides thermocouple signal conditioning (K-type support confirmed), and powers the system's digital display interface. The board includes multiple regulated voltage rails and switching circuits to control heating zones based on temperature sensor inputs. Common configurations include multi-zone temperature control for paper drying or curing applications.
Category: Power Supply
Manufacturer: AEC
Manufacturer Synonyms: Application Engineering Corporation
Manufacturer Part Number: 477247
Also Known As(AKA): 503390
Power supplies are tested with a minimum 4-hour burn-in, under load.
Common Failures
Units may experience intermittent behavior and output issues. Observed symptoms have included output relays remaining energized, fuses requiring replacement, erratic output behavior, and deterioration of electrolytic capacitors. Specific root causes are determined through evaluation of each individual unit.
Repair Approach
Repairs typically involve component-level replacement, which may include fuses, relays, solid-state output devices, and capacitors. Cleaning and inspection are performed as needed. In some cases, conformal coating may be removed and reapplied as part of the repair process. The specific repair approach is determined after evaluation and quotation.
Testing & Quality
Each unit undergoes diagnostic testing following repair to verify operation. Testing includes functional checks of output circuits, temperature measurement verification, and validation of customer interfaces such as display boards. Units are operated under test conditions to confirm stable performance before return.
Service and repair your broken AEC part
