CSL Part Number: 119660

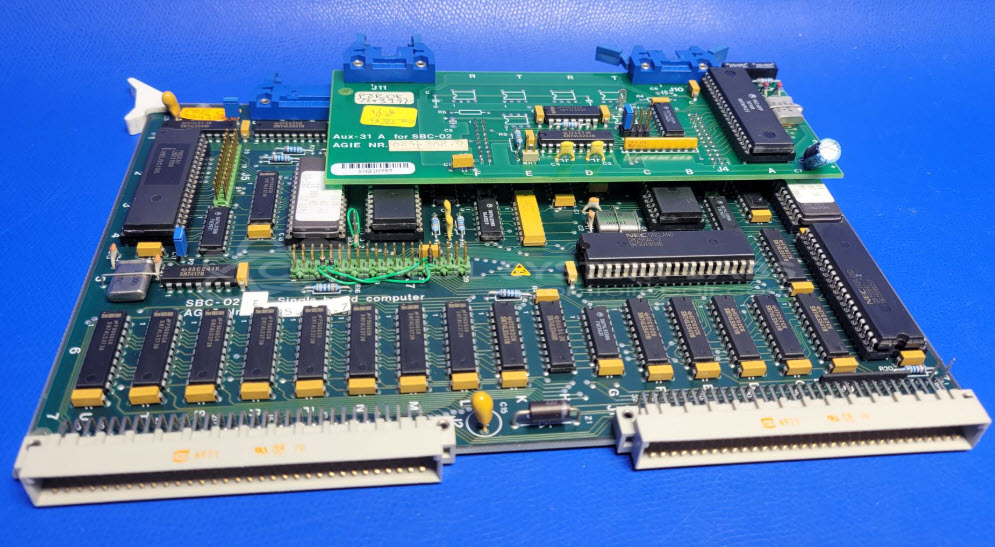

Product Overview: The Single Board Computer with Auxiliary Board (AGIE U05.375.7 with 624.362.0) is a machine control system used in AGIE Pacer electrical discharge machining (EDM) equipment. This paired configuration combines the main SBC-02-E single board computer with the Aux-31A auxiliary board to manage EDM process control, axis movement, and system coordination. It is designed for precision wire EDM and sinker EDM applications where controlled electrical discharges machine hardened metals and complex geometries.
Category: Machine Control
Manufacturer: AGIE
Alternate Manufacturer Names: Charmilles

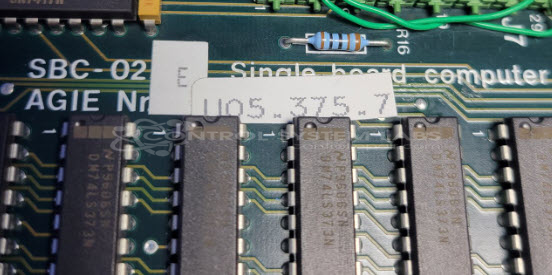

Manufacturer Part Number: U05.375.7 with 624.362.0

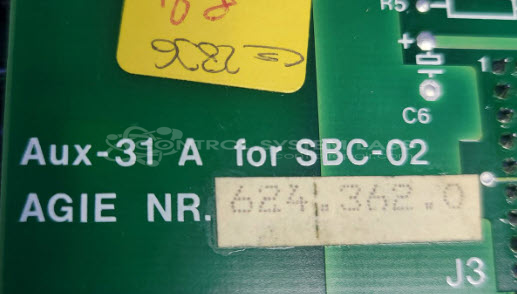

Also Known As(AKA): SBC-02-E with Aux-31A
Other Synonyms: Charmilles
Please include a copy of the machine wiring diagram and a photo of machine model serial with the symptoms or problem description.
Common Failures
One issue that may be identified during evaluation is damage to a specific position on the connector cable. This type of damage can indicate grounding-related concerns within the system.
Repair Approach
Repair work may involve replacing damaged components, such as cables and electrolytic capacitors. Our technicians will evaluate the unit and provide a quotation before any repair work begins. Addressing underlying issues during repair helps reduce the likelihood of similar failures.
Limited Repair
The AGIE part number is only available as a limited repair at our facility. Repairs to this item may be limited due to several reasons:
- Availability of parts
- Less than 100% test ability due to required support equipment
To have us attempt a repair on your AGIE part follow these steps:
Step 1 -
Click the Repair Now button above to add the part and complete the RMA form.
Step 2 -
Print the RMA form that is sent to your email, and put it in the box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
After we receive your item, we will perform an inspection and an authorization to repair will be sent for your approval. Work will begin after your authorization is received.
