CSL Part Number: 119656

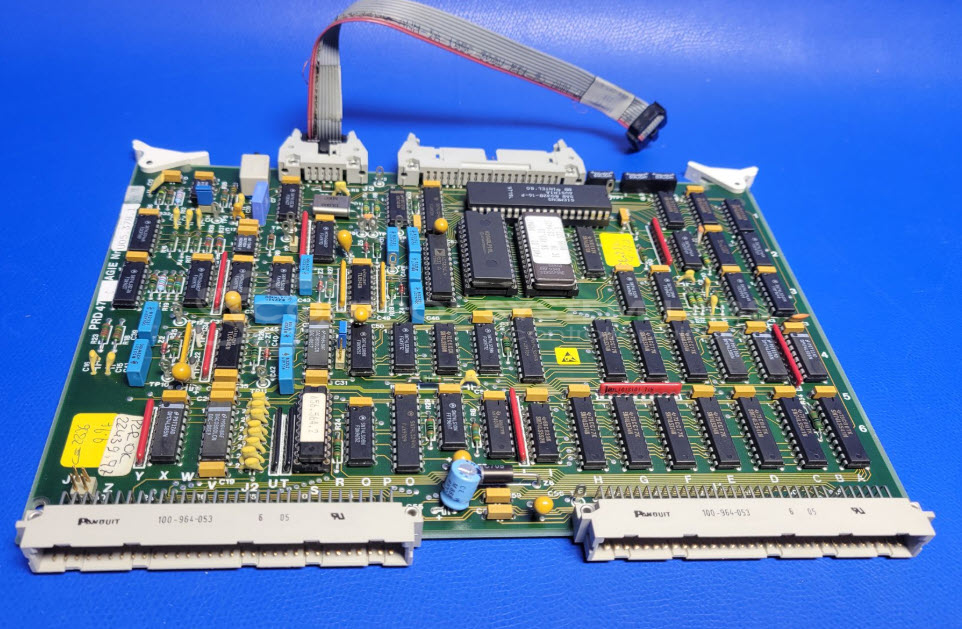

Product Overview: The AGIE U05.378.1 (also known as PRD47C) is a control board used in AGIE Pacer EDM (Electrical Discharge Machining) systems. It interfaces with other system components via multi-pin connectors and manages control signals for the EDM process. This board is critical for coordinating machine operations in wire and sinker EDM applications where precision metal removal is required.
Category: Machine Control
Manufacturer: AGIE
Alternate Manufacturer Names: Charmillies

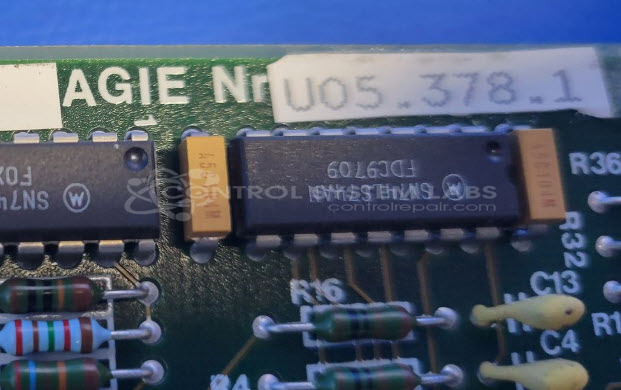

Manufacturer Part Number: U05.378.1
Also Known As(AKA): PRD47C
Other Synonyms: Charmillies
Please include a copy of the machine wiring diagram and a photo of machine model serial with the symptoms or problem description.
Common Failures
This product may experience issues with connector cable damage, which can result in damage to the cable and associated components.
Repair Approach
Typical repair steps may include replacing damaged cabling and electrolytic capacitors. Checks are performed on connected components to help ensure proper function.
Testing & Quality
Following repairs, component testing and power-up procedures are conducted. Please note that final system-level testing should be completed by the customer. Time and Materials work is billed for labor and material spent attempting repair and is not warrantied.
Limited Repair
The AGIE part number is only available as a limited repair at our facility. Repairs to this item may be limited due to several reasons:
- Availability of parts
- Less than 100% test ability due to required support equipment
To have us attempt a repair on your AGIE part follow these steps:
Step 1 -
Click the Repair Now button above to add the part and complete the RMA form.
Step 2 -
Print the RMA form that is sent to your email, and put it in the box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
After we receive your item, we will perform an inspection and an authorization to repair will be sent for your approval. Work will begin after your authorization is received.
