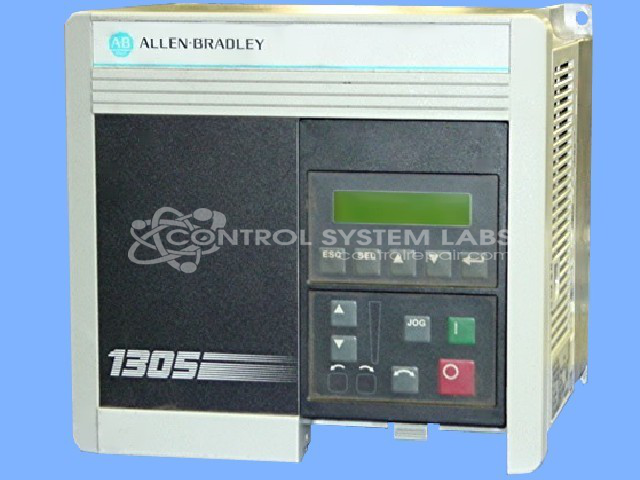

Allen Bradley 1305-BA09A SER C 1305 5 HP AC Drive
Repair
Repair Price: $ 1,284.00
Purchase
CSL Part Number: 67692
Product Overview: A compact 5 HP, 230V AC variable frequency drive used to control the speed and torque of three-phase AC induction motors. Suited for industrial motor applications such as conveyors, pumps, and fans, it supports keypad/HIM module operation for local programming and control.
Category: AC Motor Controls
Manufacturer: Allen Bradley
Manufacturer Synonyms: Rockwell Automation, allan bradly
Manufacturer Part Number: 1305-BA09A SER C
Series: 1305 Bulletin AC Drive
Common Failures
This product commonly experiences issues with keypad modules and capacitors within the gate supply circuits. Damage to the HIM (Human Interface Module) connector and cover clasps are also reported frequently.
Repair Approach
The repair process may involve replacing faulty capacitors in the gate supply circuits and remounting the HIM adapter jack. If necessary, keypad replacement may be performed to restore functionality.
Testing & Quality
Post-repair, units undergo verification of DC supplies and operational testing, including extended run testing to evaluate stability and performance.
Service and repair your broken Allen Bradley part
We can repair your Allen Bradley model 1305-BA09A SER C in our facility. Let our skilled technicians get your Allen Bradley back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
