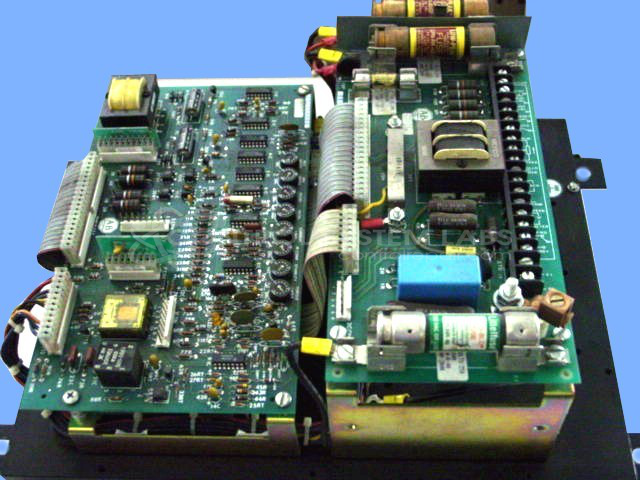

Allen Bradley 1361-DO65-10-2 1361 DC Drive 5HP

Repair

Repair Price: $ 2,384.00

Repair Now

Purchase

https://controlrepair.com/web/image/product.template/49875/image_1920?unique=fa49059
  • Condition

Purchase Price: $ 0.00 $ 0.00 2384.0 USD

$ 0.00

This combination does not exist.

Add to Cart

CSL Part Number: 31078
Product Overview: A 5 HP DC motor control drive that regulates speed and torque of DC motors by controlling armature voltage and current. Commonly used in industrial machinery such as paper processing and converting equipment. Features adjustable speed control and contactor-based motor switching.
Category: DC Motor Controls
Manufacturer: Allen Bradley
Manufacturer Synonyms: Rockwell Automation, allan bradly
Manufacturer Part Number: 1361-DO65-10-2
Series: 1361 DC Drive

Common Failures

Two primary issues were identified with this product: broken connections, which required resoldering and replacing a switch, and significant internal damage, such as damaged traces and shorted chips on the main board, alongside a defective power supply. In some cases, repairs were determined to be beyond economic repair.

Repair Approach

Standard repairs involved resoldering connections and replacing defective components, such as switches and resistors, to address electrical failures. A thorough approach, including replacing damaged items and properly terminating wires, was employed to restore functionality.

Testing & Quality

After completing necessary repairs, a rigorous testing regime was implemented, including a three-hour burn-in test, to verify the reliability and performance of the repaired unit.

Service and repair your broken Allen Bradley part


We can repair your Allen Bradley model 1361-DO65-10-2 in our facility. Let our skilled technicians get your Allen Bradley back in operation quickly.


Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.

Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.

Step 3 - Ship or mail the box to the address listed on the RMA.
