Repair
Repair Price: $ 324.00
Purchase
CSL Part Number: 27136

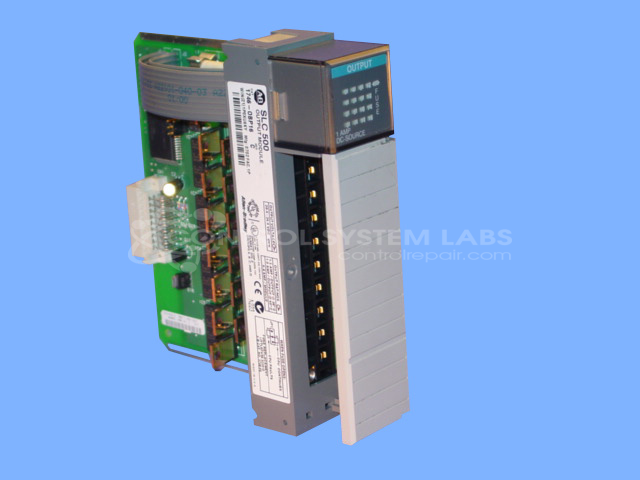

Product Overview: The 1746-OBP16/C is a high-current DC output module for Allen-Bradley SLC 500 programmable logic controllers. It provides 16 discrete output points operating at 20.4 to 24.4 VDC, with current capacity ranging from 1.0 to 1.5 amps per point depending on ambient temperature. This module is commonly used in manufacturing automation, process control systems, and industrial machinery where robust DC switching of solenoids, valves, contactors, and other field devices is required.
Category: Output Card & Modules
Manufacturer: Allen Bradley
Manufacturer Synonyms: Rockwell Automation, allan bradly
Manufacturer Part Number: 1746-OBP16/C
Series: 1746 SLC 500 Series PLC
Common Failures
This product may exhibit issues related to processor failures, as indicated by an inability to successfully pass diagnostic and testing procedures.
Repair Approach
If the processor is confirmed to be defective, repair may not be possible due to parts availability constraints. Comprehensive testing, including diagnostic and digital multimeter evaluations, is conducted to identify the root cause of failure.
Service and repair your broken Allen Bradley part
We can repair your Allen Bradley model 1746-OBP16/C in our facility. Let our skilled technicians get your Allen Bradley back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
