Repair
Repair Price: $ 364.00
Purchase
CSL Part Number: 16524

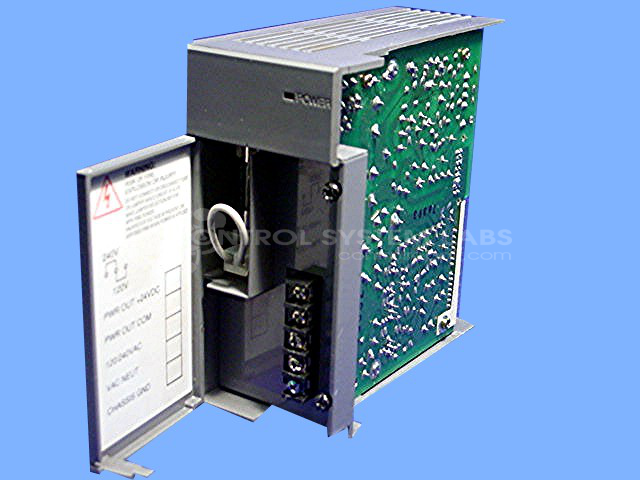

Product Overview: A rack-mounted power supply for SLC 500 series programmable logic controllers, converting AC line input (jumper-selectable for 120 or 240 VAC) into regulated +5 VDC, +24 VDC internal, and +24 VDC user/external supplies to power the chassis, CPU, and I/O modules in industrial automation systems.
Category: PLC
Manufacturer: Allen Bradley
Manufacturer Synonyms: Rockwell Automation, allan bradly
Manufacturer Part Number: 1746-P1 /A
Series: 1746 SLC 500 Series PLC
Power supplies are tested with a minimum 4-hour burn-in, under load.
Common Failures
This product has experienced various power-related failures, often involving component-level issues and connection concerns, leading to no output or intermittent operation. Common issues observed during evaluation have included damaged resistors, capacitors, transistors, and diodes. Customers have also reported units that do not start or shut down unexpectedly.
Repair Approach
Repairs typically involve replacing faulty components such as resistors, capacitors, and transistors. Resoldering connections on boards may also be performed as needed. Each repair is followed by testing to verify functionality under load.
Testing & Quality Assurance
Repaired units undergo testing, including verification of power supply outputs and operation under load. Testing is performed to confirm that the unit operates properly before being returned to the customer.
Service and repair your broken Allen Bradley part
We can repair your Allen Bradley model 1746-P1 /A in our facility. Let our skilled technicians get your Allen Bradley back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
