CSL Part Number: 73624

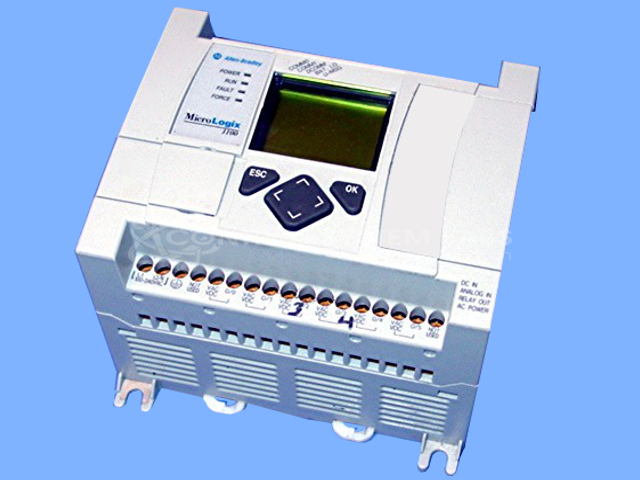

Product Overview: The Allen Bradley MicroLogix 1100 (1763-L16BWA) is a compact programmable logic controller designed for small-scale automation applications. This Series A variant features 16 digital I/O points and an integrated LCD display for on-board programming and diagnostics. It includes relay-based outputs, typically rated for 24VDC control with AC switching capability, and operates on 120VAC input power. Common applications include packaging machinery, conveyor systems, and material handling equipment where space is limited and basic discrete control is required.
Category: PLC
Manufacturer: Allen Bradley
Manufacturer Synonyms: Rockwell Automation, allan bradly
Manufacturer Part Number: 1763-L16BWA SER A
Common Failures
Two main issues have been identified with these units. The first involves relay components that may fail to activate or read open. The second common issue concerns electrolytic capacitors on the power board, which may contribute to unwanted mode changes and operational instability.
Repair Approach
For units with relay failures, the repair involves replacing the affected relays. In cases of capacitor-related issues, electrolytic capacitors on the power board are replaced to restore stable operation. Both repair processes include careful cleaning and examination to remove any contaminants, such as residues or foreign materials.
Testing & Quality
Repaired units undergo comprehensive testing, including functionality checks and extended burn-in tests, to confirm stable performance. Units are powered on and monitored to ensure they remain in the correct operational mode without reverting to programming mode or encountering other issues. Units that complete testing successfully are approved for return to the customer.
Service and repair your broken Allen Bradley part
We can repair your Allen Bradley model 1763-L16BWA SER A in our facility. Let our skilled technicians get your Allen Bradley back in operation quickly.
