Repair
Repair Price: $ 1,344.00
Purchase
CSL Part Number: 66531

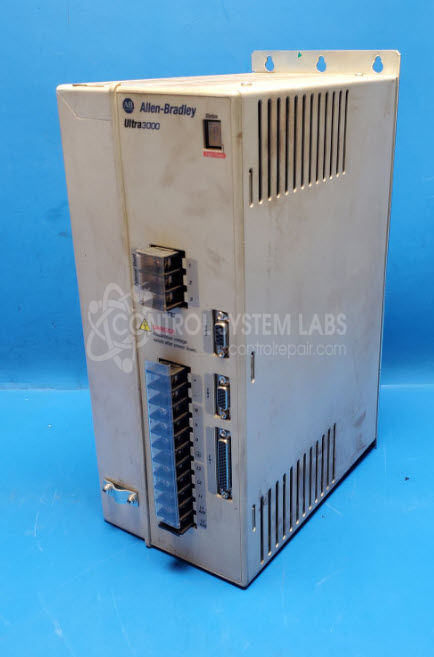

Product Overview: The Allen-Bradley 2098-DSD-HV030 is a 3.0kW digital servo drive from the Ultra 3000 series, designed to control brushless servo motors in precision motion applications. It accepts dual voltage input (230V or 460V AC) and provides closed-loop positioning and velocity control. Commonly used in packaging, material handling, and industrial automation systems, it interfaces with Allen-Bradley control platforms like ControlLogix through integrated communication modules. The drive features programmable parameters for tuning motor performance and includes built-in diagnostics for motor feedback and faults.
Category: Servo Controls
Manufacturer: Allen Bradley
Manufacturer Synonyms: Rockwell Automation, allan bradly
Manufacturer Part Number: 2098-DSD-HV030
Series: Ultra3000 Digital Servo Drives
Common Failures
Common symptoms for this product include no output and failure to drive the servo motor, often caused by blown auxiliary power fuses or defective components within the low voltage power supply area. Damaged components may include burnt capacitors, shorted diodes, and faulty MOSFETs or PWM controllers.
Repair Approach
Repairs typically involve replacing defective components and restoring damaged circuit board traces, specifically within the control power supply section. Special attention is given to replacing faulty diodes, MOSFETs, and PWM controllers to restore proper function.
Testing & Quality
Initial testing may reveal power-on failures or system errors. Post-repair testing verifies that the device powers up correctly. Complete functional verification may require appropriate test equipment, software, or connected load that is not always available during bench testing.
Service and repair your broken Allen Bradley part
We can repair your Allen Bradley model 2098-DSD-HV030 in our facility. Let our skilled technicians get your Allen Bradley back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
