Repair Price: $ 584.00
Purchase
CSL Part Number: 110342

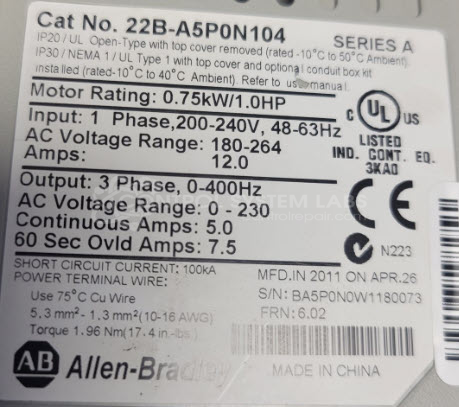

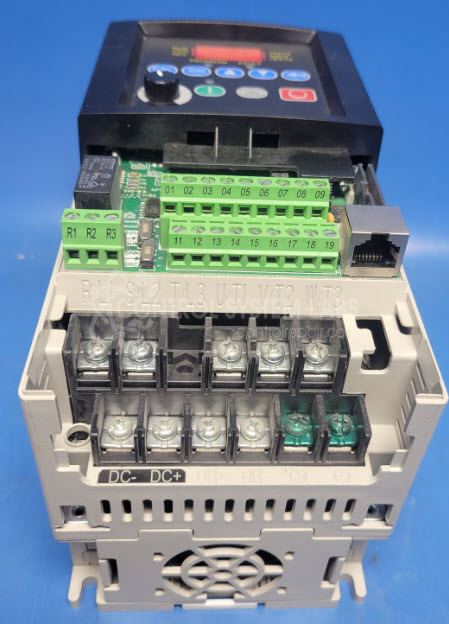

Product Overview: The Allen Bradley PowerFlex 40 22B-A5P0N104 is an adjustable frequency AC drive rated for 0.75 kW (1.0 HP) with 240V single-phase input. It controls AC motor speed and torque by varying output frequency and voltage. This panel-mount configuration is commonly used in conveyor systems, pumps, fans, and light industrial machinery where precise motor control is needed. The drive accepts single-phase power and delivers three-phase output to the motor.
Category: AC Motor Controls
Manufacturer: Allen Bradley
Manufacturer Synonyms: Rockwell Automation, allan bradly
Manufacturer Part Number: 22B-A5P0N104
Series: PowerFlex 40 AC Drive
PowerFlex 40 Adjustable Frequency AC Drive
Common Failures
Common symptoms reported include an apparent delay in motor start when motor leads are connected. However, evaluation typically shows no delay when alternate loads such as 3-phase lamps or different motors are utilized, which may indicate factors external to the unit.
Repair Approach
Repairs may involve verifying power supply connections and reviewing motor compatibility. Aging capacitors may also be evaluated if anomalies appear in diagnostic readings.
Testing & Quality
Units undergo verification testing, including burn-in tests with both motor and lamp loads. Tested units have shown no fault conditions such as start delays when external factors are accounted for. Units are confirmed to operate as expected across different testing scenarios.
Service and repair your broken Allen Bradley part
We can repair your Allen Bradley model 22B-A5P0N104 in our facility. Let our skilled technicians get your Allen Bradley back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
