Repair
Repair Price: $ 733.00
Purchase
CSL Part Number: 33942

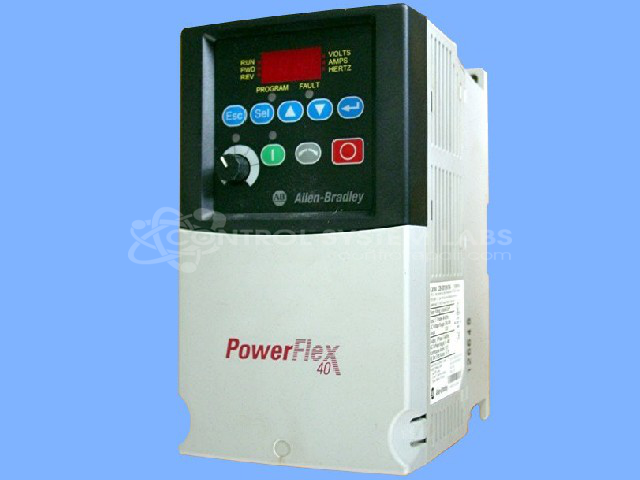

Product Overview: The Allen Bradley PowerFlex 40 22B-D010N104 is a 5 HP adjustable frequency AC drive designed for 480VAC three-phase input. It controls the speed and torque of AC induction motors by varying output frequency and voltage. Commonly used in HVAC systems, pumps, fans, and conveyors across industrial and commercial applications. This compact drive features a built-in diagnostic display, programmable parameters for motor optimization, and integrated overload protection for reliable motor control in general-purpose machinery.
Category: AC Motor Controls
Manufacturer: Allen Bradley
Manufacturer Synonyms: Rockwell Automation, allan bradly
Manufacturer Part Number: 22B-D010N104
Series: PowerFlex 40 AC Drive
Also Known As(AKA): 5 HP AC DRIVE
PowerFlex 40 Adjustable Frequency AC Drive
Common Failures
Customers may encounter issues with the unit failing to operate the motor, with the display showing a code F100 and the unit status blinking. Common failure modes observed during evaluation have included defective capacitors.
Repair Approach
The repair process typically involves evaluation and diagnosis by verifying the condition of capacitors, diodes, resistors, and PWM components. Defective components are identified and replaced as needed to restore functionality.
Testing & Quality
Post-repair testing includes powering on the display and performing a burn-in test by running the drive with a motor for four hours. This verifies that the drive operates as expected, though not all input/output functions may be verified. Each unit is reviewed by qualified technicians for reliability.
Service and repair your broken Allen Bradley part
We can repair your Allen Bradley model 22B-D010N104 in our facility. Let our skilled technicians get your Allen Bradley back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
