Repair
Repair Price: $ 733.00
Purchase
CSL Part Number: 74542

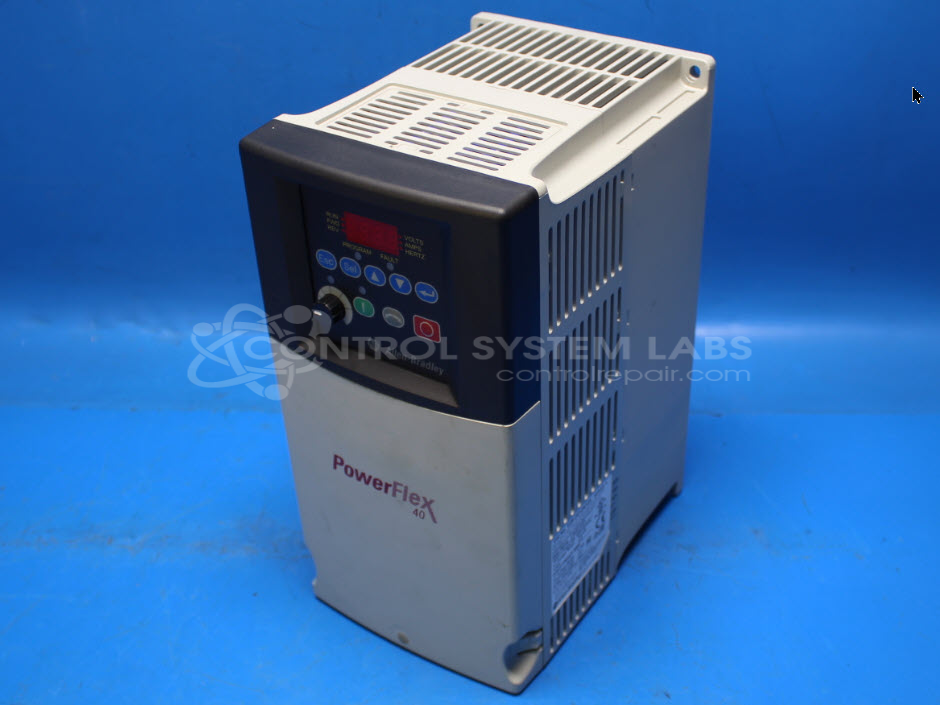

Product Overview: The Allen-Bradley PowerFlex 40 (22B-D012N104) is a 5 HP adjustable frequency AC drive rated for 480VAC three-phase input. It controls AC motor speed and torque in industrial applications including paper processing, conveyors, pumps, and fans. This compact drive features configurable communication options including RS485 serial interface, local control via keypad or potentiometer, and parameter programming for application-specific tuning. It provides variable frequency output to regulate motor performance and improve energy efficiency in automation systems.
Category: AC Motor Controls
Manufacturer: Allen Bradley
Manufacturer Synonyms: Rockwell Automation, allan bradly
Manufacturer Part Number: 22B-D012N104
Series: PowerFlex 40 AC Drive
Also Known As(AKA): 5 HP AC DRIVE
PowerFlex 40 Adjustable Frequency AC Drive
Common Failures
Allen Bradley 7.5 HP PowerFlex 40 drives may experience issues with the low-voltage power supply, which can affect the operation of the ethernet communication card. Components such as the communication chip and AND gate buffer may fail, which can lead to communication issues over RS485 connections.
Repair Approach
Repairs typically involve replacing defective components responsible for communication issues. This may include the communication chip and the AND gate buffer. Preventative replacements of electrolytic capacitors may also be performed to support reliability.
Testing & Quality
Each unit undergoes diagnostic testing to verify the functionality of the low-voltage power supply and communication systems. Repairs are validated with a burn-in test using a motor setup. Final inspection ensures all components are correctly installed and any structural issues, such as bent casings, are addressed. The product must pass testing protocols before being approved for return.
Service and repair your broken Allen Bradley part
We can repair your Allen Bradley model 22B-D012N104 in our facility. Let our skilled technicians get your Allen Bradley back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
