Repair
Repair Price: $ 804.00
Purchase
CSL Part Number: 84142

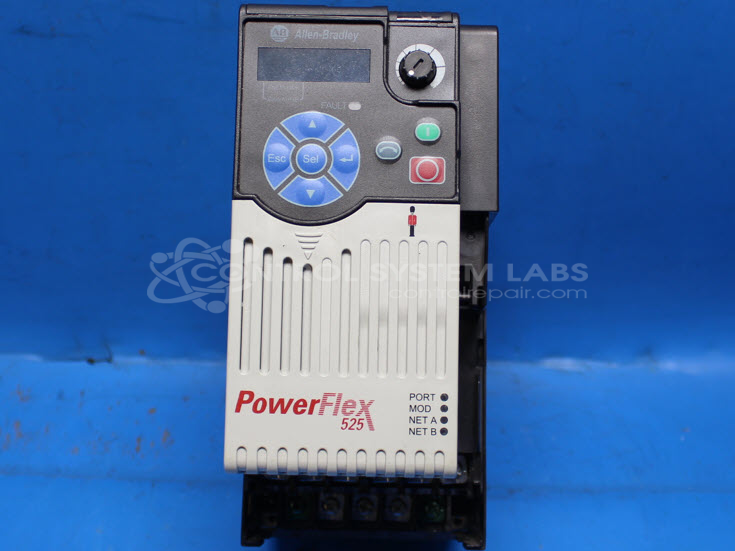

Product Overview: The PowerFlex 525 is a general-purpose AC drive designed to control three-phase induction motors in industrial applications. This 480V, 5.0 HP model (25B-D010N104) features a modular design with replaceable power blocks and control boards, making it cost-effective to repair. It incorporates IGBT-based inverter technology and is commonly used in pumps, fans, conveyors, and material handling equipment. The drive offers adjustable frequency output, start/stop control, direction reversal, and configurable input/output terminals. Its compact, panel-mountable enclosure suits space-constrained installations while providing reliable motor speed control across various manufacturing and processing environments.
Category: AC Motor Controls
Manufacturer: Allen Bradley
Manufacturer Synonyms: Rockwell Automation, allan bradly
Manufacturer Part Number: 25B-D010N104
Series: PowerFlex 525 AC Drive
PowerFlex 525 AC Drives are reliable, highly serviceable drives. Their modular design is easily repaired so that you don't have to replace it with the next generation drive.
Common Failures
Common issues reported with this product include ground fault errors, frequency instability, and corrosion that can affect grounding and internal components.
Repair Approach
Typical repairs may involve replacement of components such as IGBT modules, power base assemblies, and capacitors. Cleaning may be performed to address corrosive dust that can lead to faults. Connections and solder joints are inspected and corrected as needed.
Testing & Quality
Following repair, the unit undergoes testing that may include motor testing, burn-in testing, and operational verification across various conditions. Testing evaluates start/stop functions, speed controls, and confirms that reported faults have been addressed.
Service and repair your broken Allen Bradley part
We can repair your Allen Bradley model 25B-D010N104 in our facility. Let our skilled technicians get your Allen Bradley back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
