Repair
Repair Price: $ 936.00
Purchase
CSL Part Number: 84150

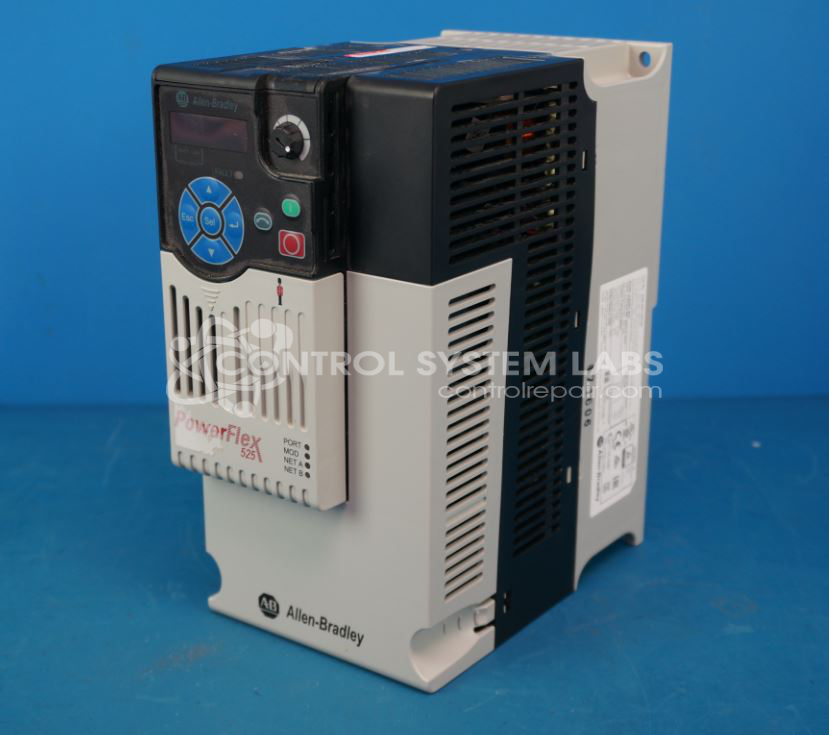

Product Overview: The PowerFlex 525 is a general-purpose AC drive for three-phase motors, designed for 480V input and rated up to 7.5 HP output. This configuration includes enhanced EMC filtering for reduced electromagnetic interference. It features a modular, field-serviceable design with replaceable power components including IGBT modules, gate driver circuits, and protection devices. Commonly used in industrial automation applications requiring variable speed motor control, including material handling, pumps, fans, and conveyors. The drive provides V/Hz control and can operate motors across a range of speeds and torques.
Category: AC Motor Controls
Manufacturer: Allen Bradley
Manufacturer Synonyms: Rockwell Automation, allan bradly
Manufacturer Part Number: 25B-D013N114
Series: PowerFlex 525 AC Drive
PowerFlex 525 AC Drives are reliable, highly serviceable drives. Their modular design is easily repaired so that you don't have to replace it with the next generation drive.
Common Failures
Common reported issues include no output voltage. Evaluation has identified defective components such as shorted TVS diodes, optocouplers, IGBT modules, and open resistors as potential contributing factors.
Repair Approach
Repair procedures may include inspection of bridge capacitors and output modules, cleaning and reseating module connections, and component replacement as needed. When repair requirements are determined to be extensive, the unit may be classified as Beyond Economic Repair (BER) and returned unrepaired.
Testing & Quality
During evaluation and testing, conditions such as excessive current draw may be observed. Such findings can support a determination that a unit is Beyond Economic Repair (BER).
Service and repair your broken Allen Bradley part
We can repair your Allen Bradley model 25B-D013N114 in our facility. Let our skilled technicians get your Allen Bradley back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
