Repair
Repair Price: $ 588.00
Purchase
CSL Part Number: 84147

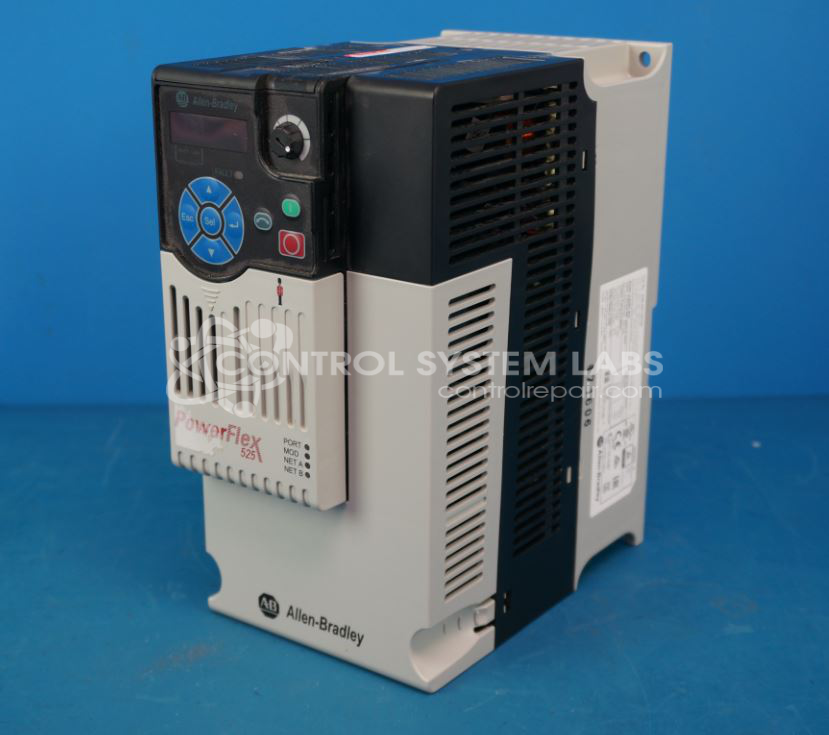

Product Overview: The PowerFlex 525 is a modular AC variable frequency drive designed for three-phase motor control applications. This unit is configured for 480V input, 2.0 HP output, and includes enhanced EMC filtering to reduce electromagnetic interference. It features a removable control module and power structure for easy field service and component-level repair. Common applications include conveyors, pumps, fans, and general industrial machinery. The drive supports multiple communication protocols and can be configured for standalone operation or integrated into larger control systems.
Category: AC Motor Controls
Manufacturer: Allen Bradley
Manufacturer Synonyms: Rockwell Automation, allan bradly
Manufacturer Part Number: 25B-D4P0N114
Series: PowerFlex 525 AC Drive
PowerFlex 525 AC Drives are reliable, highly serviceable drives. Their modular design is easily repaired so that you don't have to replace it with the next generation drive.
Common Failures
The unit was received without a top module. During inspection, screws were found loose inside the unit, indicating improper assembly. An "over current" error message was displayed. The unit requires specific controllers and configurations for full operation that were not available at the time of evaluation.
Repair Approach
After inspection, it was determined that the unit could not be repaired as received. Proper operation depends on specific hardware and setup that were not present. The evaluation identified the need for correct assembly and appropriate mounting of control boards.
Testing & Quality
Initial diagnostics confirmed that DC supplies, displays, and keypads were functioning correctly. Further testing was limited due to the absence of compatible peripheral devices such as a CompactLogix 5370 Controller. Full operational evaluation would require configuring the unit to an out-of-box state with specific jumper settings.
Service and repair your broken Allen Bradley part
We can repair your Allen Bradley model 25B-D4P0N114 in our facility. Let our skilled technicians get your Allen Bradley back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
