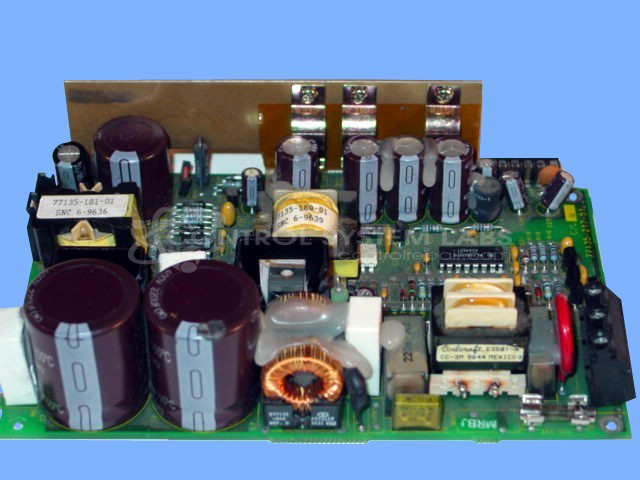

Allen Bradley 77135-222-51 G PanelView Power Supply
Repair
Repair Price: $ 1,016.00
Purchase
CSL Part Number: 26391
Product Overview: A power supply module for operator interface terminals used in industrial automation and control systems. It delivers regulated outputs of 5V, +12V, and -12V to drive display and logic circuitry in human-machine interface panels.
Category: Power Supply
Manufacturer: Allen Bradley
Manufacturer Synonyms: Rockwell Automation, allan bradly
Manufacturer Part Number: 77135-222-51 G
Power supplies are tested with a minimum 4-hour burn-in, under load.
Common Failures
This product may experience issues with the input circuit, which can result in fuse failure. Symptoms may include the device not powering on or functioning inconsistently.
Repair Approach
When fuse failures are identified during evaluation, the damaged fuse is replaced and solder connections are inspected and reflowed as needed to support reliable operation. These steps address common causes of intermittent power issues.
Testing & Quality
Following repair, the device undergoes testing that includes burn-in procedures and verification of voltage outputs to confirm stability and proper operation under expected load conditions.
Service and repair your broken Allen Bradley part
We can repair your Allen Bradley model 77135-222-51 G in our facility. Let our skilled technicians get your Allen Bradley back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
