Allen Bradley 8520-ENC3 Ser A Control Board Digital Servo Module
Repair
Call for price
Purchase
CSL Part Number: 84215

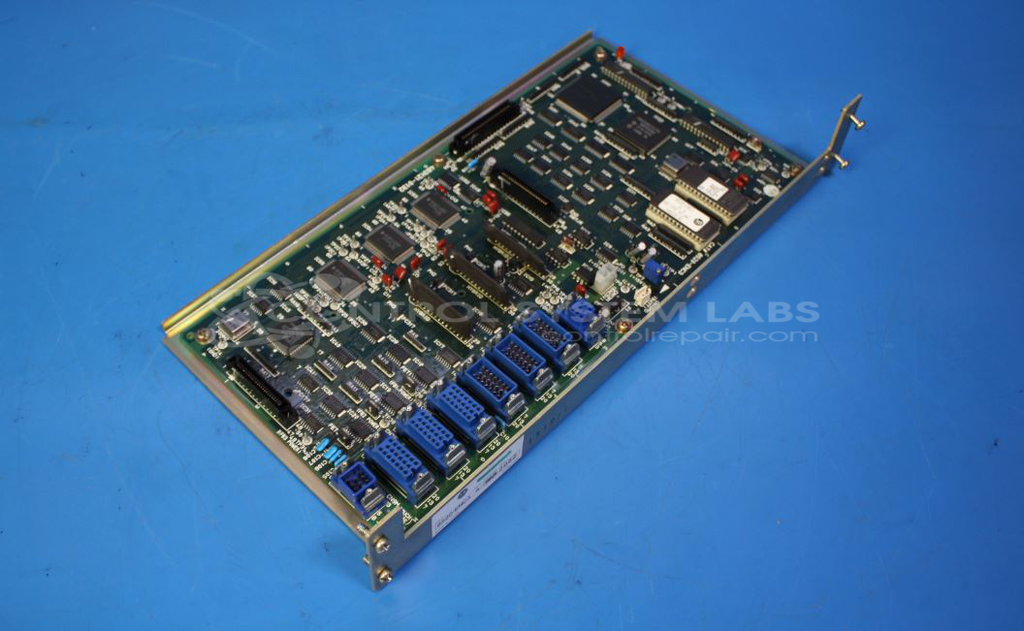

Product Overview: A digital servo control board module used in CNC machine tool systems. It processes differential quadrature encoder feedback (ABZ and VYW channels) for closed-loop servo axis control, interfacing position signals to the system microcontroller for precise motion coordination.
Category: Control Board
Manufacturer: Allen Bradley
Manufacturer Synonyms: Rockwell Automation, allan bradly
Manufacturer Part Number: 8520-ENC3 Ser A
Series: 8520 9/Series CNC Hardware
Also Known As(AKA): 463121-0132
Common Failures
One common issue is related to capacitors, where a 0.1 uF capacitor may become detached from the circuit board. Additionally, problems can arise with the electrolytic capacitors, which may require replacement to restore functionality.
Repair Approach
The repair process for these issues typically involves replacing electrolytic capacitors and reinstalling any detached capacitors as needed. The traces on the printed circuit board are examined to identify any underlying problems.
Testing & Quality
Repairs are verified by examining signal paths and using testing equipment to confirm the integrity of inputs and circuit connections. In cases where the issue cannot be replicated during initial testing, additional test setups may be developed to verify signal paths.
Service and repair your broken Allen Bradley part
We can repair your Allen Bradley model 8520-ENC3 Ser A in our facility. Let our skilled technicians get your Allen Bradley back in operation quickly.
