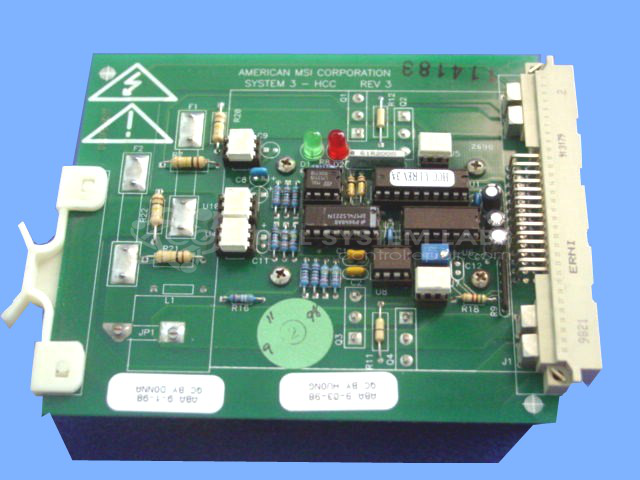

American MSI 3000.020.085 System 3 Heater Control Card HCC

Repair

Repair Price: $ 340.00

Repair Now

Purchase

https://controlrepair.com/web/image/product.template/44019/image_1920?unique=80fc3f1
  • Condition

Purchase Price: $ 0.00 $ 0.00 340.0 USD

$ 0.00

This combination does not exist.

Add to Cart

CSL Part Number: 25017
Product Overview: A heater control card that regulates power to electric heating elements using SCR-based output, supporting full and half-power modes with zone temperature control. Rated for 15 amps at 240V, it is used in industrial process heating applications such as paper manufacturing equipment.
Category: Temperature Control
Manufacturer: American MSI
Manufacturer Synonyms: American MSI Corporation
Manufacturer Part Number: 3000.020.085
Also Known As(AKA): HCC240-15

Common Failures

Common issues with this product include power-related problems such as blown fuses, shorted outputs, and SCR failures. Some units have exhibited problems with components including optos and ICs. These failures may result in the unit not providing output as expected or operating in unintended modes.

Repair Approach

Repairs typically involve replacing faulty components such as SCRs, optos, ICs, and fuses. In some cases, circuit boards are resoldered, and components are reseated or cleaned. Preventative replacements of capacitors may be performed to address potential future failures. Some units require programming verification or reseating of chips.

Testing & Quality Assurance

After repairs, units undergo testing under load conditions, including burn-in tests to verify reliability and functionality. Units are checked for output correctness and to verify they function as designed. If severe faults are detected during evaluation, alternative solutions may be discussed with the customer.

Service and repair your broken American MSI part


We can repair your American MSI model 3000.020.085 in our facility. Let our skilled technicians get your American MSI back in operation quickly.


Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.

Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.

Step 3 - Ship or mail the box to the address listed on the RMA.
