CSL Part Number: 118572

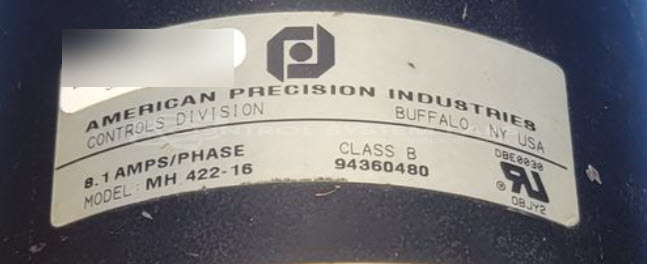

Product Overview: The MH422-16 is a servo motor manufactured by American Precision Industries, rated at 8.1 amps per phase. It is typically used in precision motion control applications requiring accurate positioning and speed control, often paired with indexer drives like the API P315X-P. The motor features ITT cannon-style electrical connectors (KPT02E12-10S and KPT02E14-5P) for power and feedback connections. This model is part of the MH422 series and is commonly found in automated manufacturing equipment, assembly systems, and other industrial machinery requiring high-performance servo control.
Category: Motors
Manufacturer: American Precision Industries
Manufacturer Synonyms: API Controls Danaher Motion
Manufacturer Part Number: MH422-16
Include motor drive , cables with motor when sending in.
Common Failures
The Indexer Drive API P315X-P may exhibit issues indicated by the Over Temperature and No Power status LEDs. These symptoms can persist even after disconnecting the drive from the motor and rebooting. Additionally, damaged connectors and missing screws may be present, which can result from shipping-related physical damage.
Repair Approach
Repair work may involve replacing damaged components such as cable connectors and screws. In this case, both electrical connectors on the motor were damaged and were replaced. The back cover was also missing a screw, which was added.
Testing & Quality
Following repair, components are tested to verify functionality. Warranty coverage applies to the components that have been replaced. Repairs address visible issues identified during evaluation. If additional problems are discovered during use, those would need to be evaluated separately.
Service and repair your broken American Precision Industries part
We can repair your American Precision Industries model MH422-16 in our facility. Let our skilled technicians get your American Precision Industries back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
