Repair
Repair Price: $ 2,592.00
Purchase
CSL Part Number: 19629

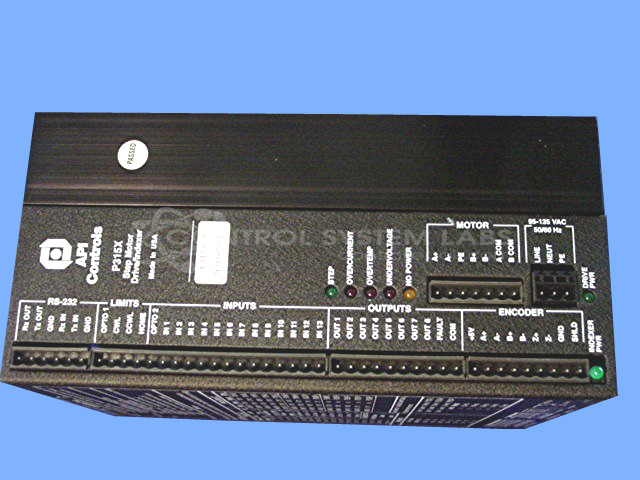

Product Overview: The American Precision Industries P315X is a stepper motor drive with integrated indexer control used for precise motion control in automated machinery. It combines a microstep drive with programmable indexing functions, allowing users to store motion profiles in onboard NVRAM. Common applications include packaging equipment, material handling systems, and paper processing machines where accurate positioning and repeatable motion sequences are required. The unit provides motor power output, encoder feedback support, and diagnostic LED indicators for system status monitoring.
Category: Stepper Controls
Manufacturer: American Precision Industries
Manufacturer Synonyms: API Controls Danaher Motion
Manufacturer Part Number: P315X
Common Failures
The Indexer Drive API P315X-P displayed persistent issues with an Over Temperature status LED and a No Power status LED. These problems persisted even after disconnecting the drive from the motor and rebooting. The symptoms suggested potential defective components affecting temperature and power regulation in the unit.
Repair Approach
The repair involved replacing several defective components, including non-volatile RAM (NVRAM) and electrolytic capacitors. Diagnostic testing confirmed the initial issues, and a test fixture was created to verify the repair. The NVRAM replacement resulted in lost data, requiring reprogramming or downloading a backup. Thorough cleaning was performed due to the unit's condition, and additional time was required for this process.
Testing & Quality
Following repair, the unit underwent extensive verification, including a burn-in test. All component replacements were verified, and the unit passed quality assurance tests.
Service and repair your broken American Precision Industries part
We can repair your American Precision Industries model P315X in our facility. Let our skilled technicians get your American Precision Industries back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
