American Screen Printing 116320 DC Motor Brake

Repair

Repair Price: $ 408.00

Repair Now

Purchase

https://controlrepair.com/web/image/product.template/54094/image_1920?unique=87aadfb
  • Condition

Purchase Price: $ 0.00 $ 0.00 408.0 USD

$ 0.00

This combination does not exist.

Add to Cart

CSL Part Number: 35379

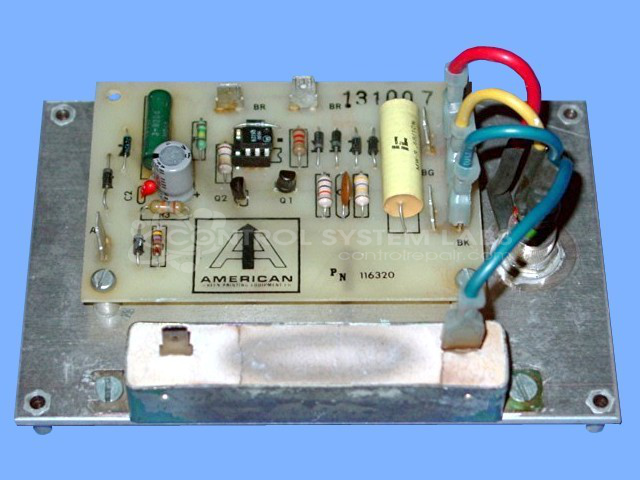

Product Overview: A DC motor brake module that provides controlled stopping and braking of DC motors by dissipating motor energy through a braking resistor. Used in industrial motor control systems such as screen printing equipment. Features SCR switching, zener regulation, and onboard filtering for reliable braking operation.
Category: DC Motor Controls
Manufacturer: American Screen Printing
Manufacturer Part Number: 116320
Also Known As(AKA): HAMPTON PDS 600300

Common Failures

Common issues observed with this product include an open brake resistor and a shorted zener diode. These issues may contribute to operational failures and require evaluation and repair.

Repair Approach

Repairs may involve replacing affected components, including resistors, capacitors, and diodes. In some cases, adding insulators to critical components such as SCR studs can improve durability and operation. After component replacements, verification of the DC supply and operational status is conducted to confirm functionality.

Service and repair your broken American Screen Printing part


We can repair your American Screen Printing model 116320 in our facility. Let our skilled technicians get your American Screen Printing back in operation quickly.


Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.

Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.

Step 3 - Ship or mail the box to the address listed on the RMA.
