Repair Price: $ 604.00
Purchase
CSL Part Number: 87022

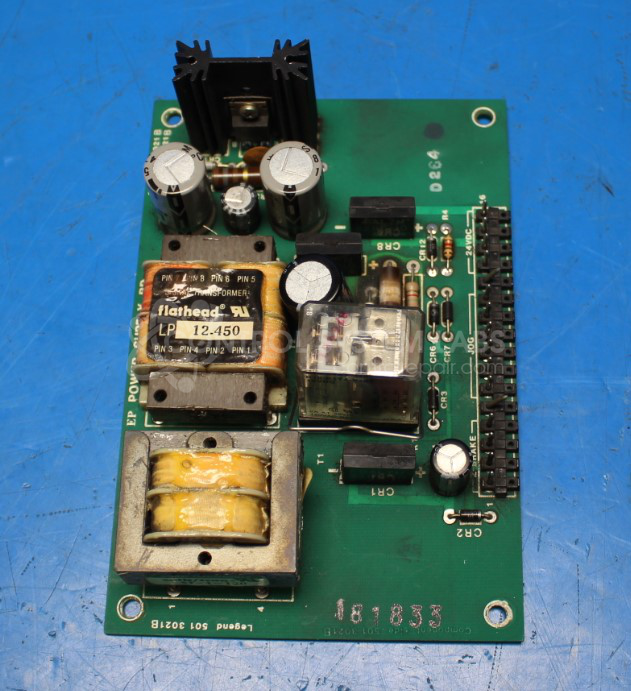

Product Overview: The Ameritek 501 4021B EP Power Supply Board is a multi-output power supply module providing 90VDC, 24VDC, and 12VDC outputs. It is commonly used in industrial paper processing machinery and control systems. The board features regulated outputs with zener diode voltage regulation and is designed to power control circuits and associated equipment. Various configurations exist including models 501 3021B and 501 1021B with similar functionality.
Category: Power Supply
Manufacturer: Ameritek
Manufacturer Part Number: 501 4021B
Also Known As(AKA): 501 3021B 501 1021B
Common Failures
This product often experiences issues with its power supply, which may lead to unit shutdown. Frequently observed failures include voltage regulating components, which can affect the stability of the 12V output.
Repair Approach
Our repair process includes evaluation and replacement of faulty components in the power regulation circuitry. When components have burned out, circuit board repairs, such as trace repair, may be performed to restore functionality.
Testing & Quality
Post-repair testing includes powering on the unit, verifying output voltages under various load conditions, and performing a burn-in test to evaluate stability and performance. All outputs are checked against specification requirements.
Service and repair your broken Ameritek part
We can repair your Ameritek model 501 4021B in our facility. Let our skilled technicians get your Ameritek back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
