CSL Part Number: 86854

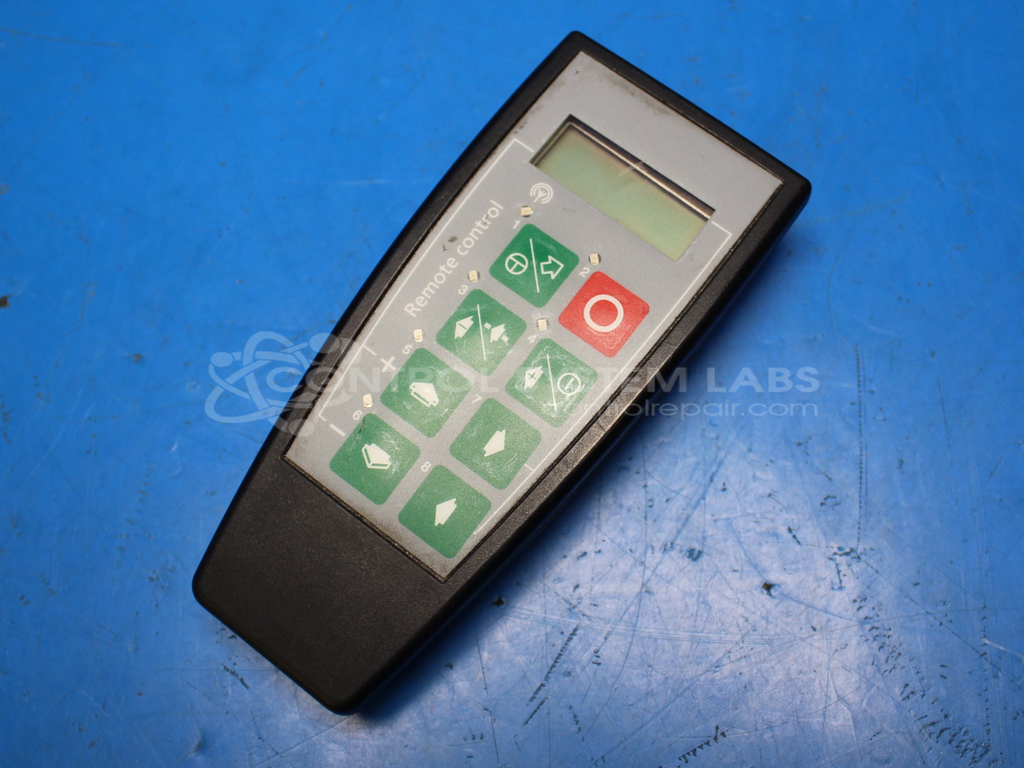

Product Overview: The Ameritek 626975 is a battery-powered wireless remote controller used for industrial equipment operation. It features an LCD display, LED indicators, and a multi-button keypad for transmitting control signals to compatible receiver units. Operating on 3V battery power, it uses RF communication to wirelessly control equipment from a distance. The internal circuitry includes a microprocessor with crystal oscillator timing and voltage regulation. This type of remote is commonly found in manufacturing and material handling applications where operators need portable, hands-free equipment control.
Category: Transmitter
Manufacturer: Ameritek
Manufacturer Part Number: 626975
Common Failures
This product has experienced failures primarily due to physical damage, such as impact damage, leading to a damaged crystal oscillator and a damaged battery tray. These issues often cause the device not to power on properly, with minimal display activity.
Repair Approach
Repairs included the replacement of the damaged crystal oscillator, which restored the unit's ability to power on. Attempts were made to repair the battery tab holders. The unit was further tested to ensure all LEDs were functional and that it could power on with the correct display output.
Testing & Quality
After repairs, the product was subjected to diagnostic testing, where it successfully powered on and displayed correctly. All LEDs could light up, and buttons were verified to respond properly. Due to test equipment limitations, certain functions like keypad mapping and RF communications could not be verified. Burn-in testing was conducted to further ensure quality.
Service and repair your broken Ameritek part
We can repair your Ameritek model 626975 in our facility. Let our skilled technicians get your Ameritek back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
