CSL Part Number: 86625

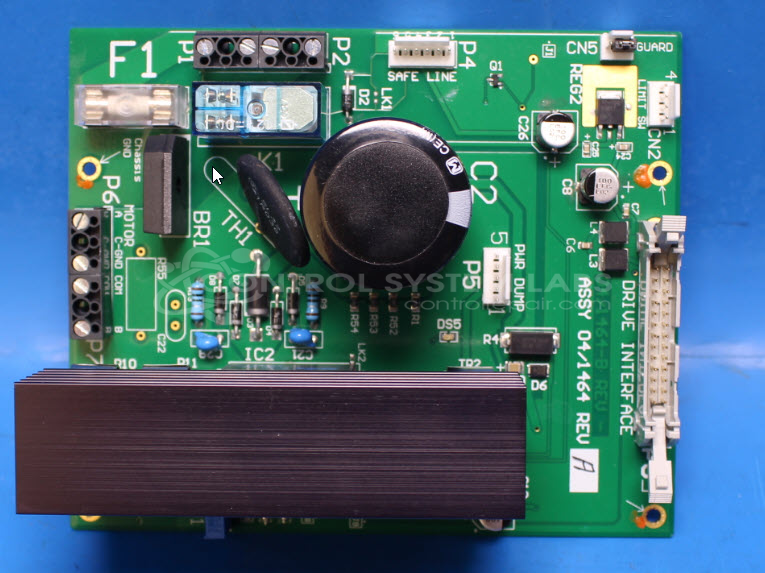

Product Overview: A motor drive control board that regulates and monitors motor operation, driving the servo or actuator motion in universal materials testing machines. Featuring SA60 power amplifier output stages, it manages motor control signals and reports motor fault conditions during test sequences.
Category: Control Board
Manufacturer: Ametek
Manufacturer Part Number: 04/1464 Rev A
Found in LS5 Series Universal Test Machines among others
Common Failures
This product has experienced issues related to motor fault errors, primarily caused by leakage between components and ground as well as shorted outputs. Common problems include control issues and short circuits on integrated circuits.
Repair Approach
Repairs typically involve replacing faulty components that exhibit leakage or shorted connections. Boards are thoroughly tested with specialized equipment to identify problematic areas and confirm the integrity of other components. Components that are found to be defective are replaced.
Testing & Quality
The repaired boards undergo extensive testing with advanced diagnostic tools to verify component function. In some cases, further testing by the customer may be required to confirm full functionality in the final application. All other components are tested and verified before returning the product to the customer.
Service and repair your broken Ametek part
We can repair your Ametek model 04/1464 Rev A in our facility. Let our skilled technicians get your Ametek back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
