CSL Part Number: 107784

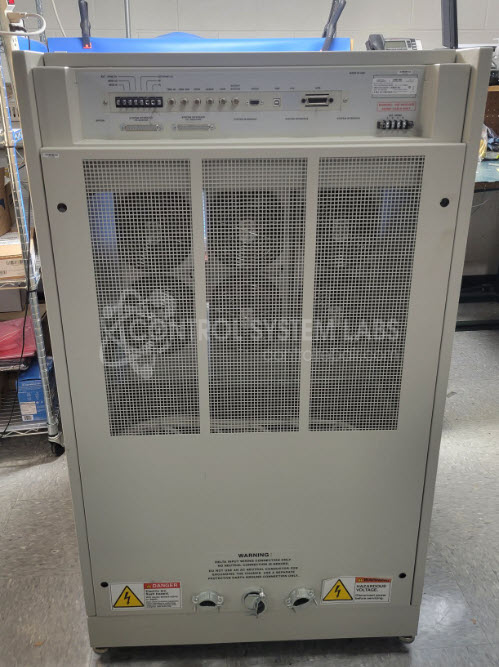

Product Overview: This is a programmable AC power supply that delivers 30kVA in single-phase or three-phase configurations at 480V input with high frequency capability. It features modular amplifier assemblies with power factor correction circuits, soft-start inrush control, and DC bus regulation using IGBT switching modules. Commonly used in aerospace, defense, and industrial test applications to simulate AC power conditions for equipment validation and burn-in testing. The unit accepts 480VAC three-phase input and can generate variable voltage and frequency outputs up to 400Hz for testing avionics, radar systems, and other electrical equipment requiring precise AC power.
Category: Power Supply
Manufacturer: Ametek
Alternate Manufacturer Names: California Instruments
Manufacturer Part Number: MX30-3PI-480-HF-HV
Series: MX Power Supply
Other Synonyms: California Instruments
Common Failures
The MX30 series may experience issues related to output voltage faults during testing and power-up sequences. Common symptoms can include blown fuses, defective IGBT modules, and damaged soft-start resistors. These faults may result from over-voltage situations or defective components in the Power Factor Correction (PFC) circuit.
Repair Approach
Repairs may involve replacing defective components such as IGBT modules, fuses, and resistors. Diagnosing and addressing issues with power amplifier assemblies and PFC circuits is part of the evaluation process. Ensuring all connections are secure and addressing any damaged circuit board traces are standard procedures during repairs. Additional component replacement may be recommended based on evaluation findings.
Testing & Quality
After repair, comprehensive testing is conducted, including burn-in tests at various loads and voltages. These tests verify that the unit performs under load and without faults. Units are subjected to diagnostic processes to confirm proper operation before they are cleared for return to service.
Service and repair your broken Ametek part
We can repair your Ametek model MX30-3PI-480-HF-HV in our facility. Let our skilled technicians get your Ametek back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
