Repair
Repair Price: $ 1,494.00
Purchase
CSL Part Number: 85957

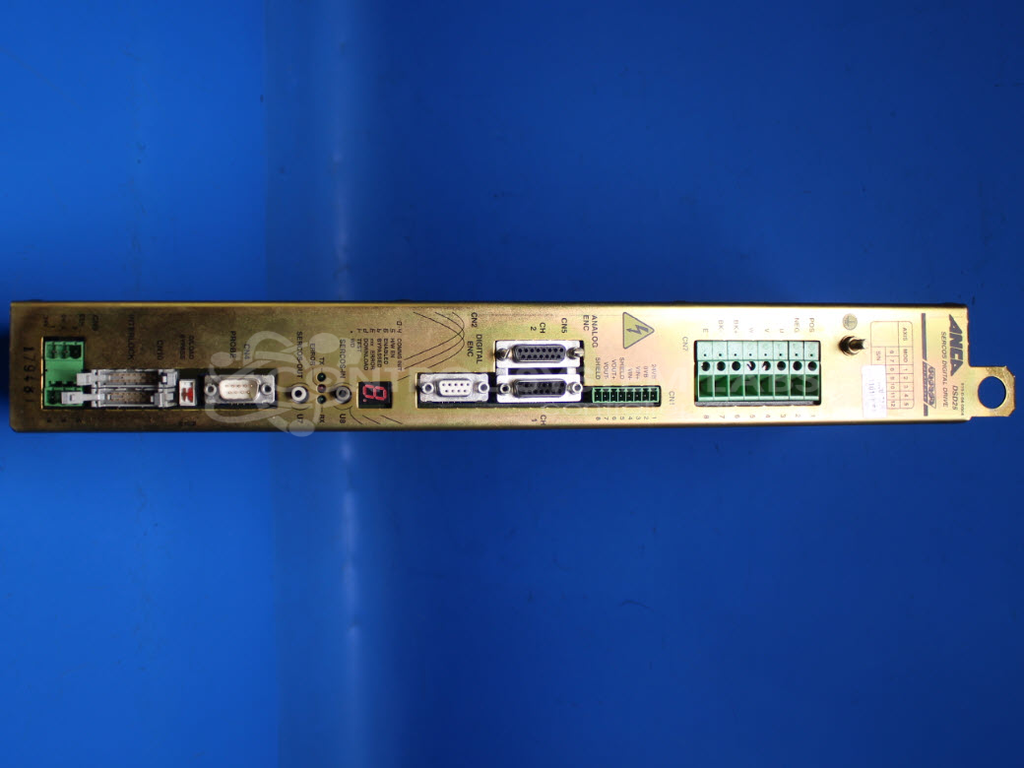

Product Overview: The ANCA DSD25 is a Sercos-based servo digital drive used to control servo motors in CNC grinding and tooling machines. It features an integrated intelligent power module (PM25RSB120, 25A, 1200V) that drives three-phase motor outputs (U, V, W). The drive operates on 24VDC control power and includes onboard DC-DC converters, a 32MHz oscillator module, error diagnostics with LED display, and thermal management via a 24VDC axial cooling fan. Common applications include ANCA precision grinding equipment where high-performance motion control is required.
Category: Servo Controls
Manufacturer: ANCA
Manufacturer Part Number: DSD25
Also Known As(AKA): 919-0-04-0004
Common Failures
Common issues reported include fuses blowing upon powering the unit, control voltage errors, and error codes such as 'E031'. These symptoms may indicate problems with oscillators, output modules, or other internal components.
Repair Approach
Repairs may involve replacing components such as oscillator modules, power modules, terminal blocks, and fuses. In some cases, modules like a chopper/IGBT inverter and cooling fans are replaced as part of the repair process. Connectors and other components may require tightening or cleaning to address the reported issues.
Testing & Quality
Following repair, units are tested to verify functionality. Testing may include diagnostic checks and voltage verification to confirm resolution of reported issues. Units that pass inspection are returned to the customer. Customers are encouraged to perform final testing upon receipt to ensure the unit meets their application requirements.
Repair your broken ANCA part
We can repair your ANCA model DSD25 .
Please note: our repair turnaround time may be longer than our standard lead times for this item.
Step 1 -
Click the green button above, "Repair Now," and add to your RMA.
Step 2 -
Print the RMA form that is emailed to you, and put it in a box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
You will be sent an authorization for repair via email. Your approval is needed before any work is started.
