Repair
Repair Price: $ 2,216.00
Purchase
CSL Part Number: 105933

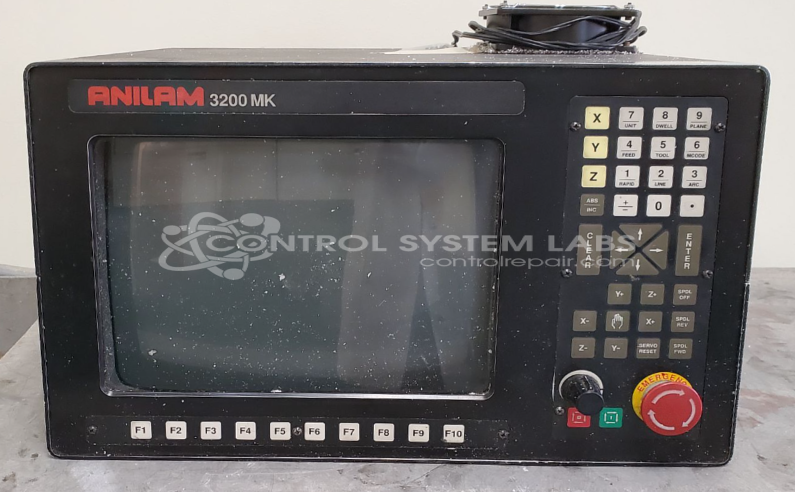

Product Overview: The Anilam 3200MK Color Monitor Controller is a CNC machine control system featuring an integrated operator interface with display, keyboard, and control panel. It runs DOS-based CNC software (versions 3.73A to 3.80A) from an IDE hard drive and uses a floppy drive for software installation and updates. The system includes a keypad for manual data entry and supports PS/2 keyboard input. It operates on 120 VAC with internal DC power supplies providing +5V, ±12V, and 24V for various components. Commonly used on 2-axis and multi-axis milling machines and lathes for numerical control operations.
Category: Machine Control
Manufacturer: Anilam Electronics
Manufacturer Part Number: A7322002
Common Failures
The CRT monitor on this product may experience display issues, such as a fuzzy screen or inability to display correctly. The hard drive can also fail, resulting in booting errors related to missing or corrupted operating system files. Power supply issues may manifest as shorted inputs or incorrect voltage readings.
Repair Approach
Once the unit is received and reviewed, we can provide a quotation before charges are incurred. Repairs may include replacing the defective display and upgrading it with an LCD kit, reformatting and reloading the DOS operating system and CNC control software onto the replacement hard drive, and testing and reassembling all internal components. Additionally, faulty power supplies may be replaced or reconnected as needed, and BIOS settings may require adjustment for display output.
Testing & Quality
The repaired units undergo diagnostic testing to verify functionality. Tests include powering on the unit, loading of CNC software, keyboard and floppy drive functionality, and verification of DC fan operations. A final burn-in test is performed before the unit is returned for customer calibration and on-site setup.
Service and repair your broken Anilam Electronics part
We can repair your Anilam Electronics model A7322002 in our facility. Let our skilled technicians get your Anilam Electronics back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
