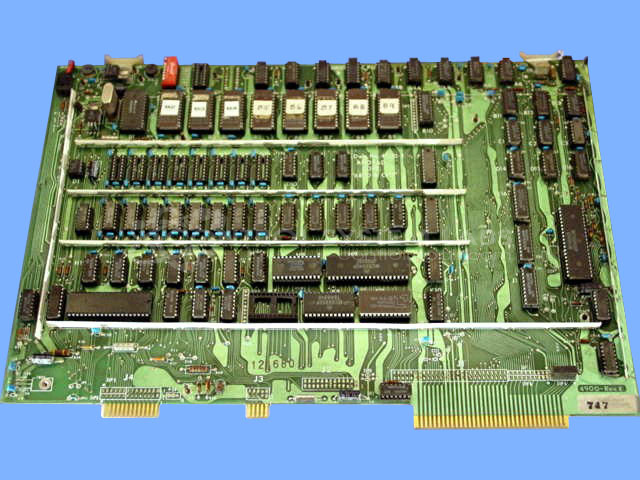

Anorad 62137 6800-B CPU Card

Repair

Repair Price: $ 1,404.00

Repair Now

Purchase

https://controlrepair.com/web/image/product.template/50971/image_1920?unique=4c7b4f9
  • Condition

Purchase Price: $ 0.00 $ 0.00 1404.0 USD

$ 0.00

This combination does not exist.

Add to Cart

CSL Part Number: 32210
Product Overview: A microprocessor-based CPU control card used in CNC motion control systems, managing axis positioning, feed rate commands, video display output, and keyboard/RS-232 communication. It features onboard EPROM program storage, a math coprocessor, and CRT video processing for driving multi-axis positioning stages and optical/laser machining equipment.
Category: Motor Controls
Manufacturer: Anorad
Manufacturer Part Number: 62137
Also Known As(AKA): 4900-REV E ON BOARD

Common Failures

Customers frequently report issues such as no response to keypad, intermittent operation, and various display problems including no output or blank screens. These often stem from issues with EPROMs, connectivity, and component failures such as math processors and crystals. Bent or broken bus strips and pins, particularly affecting EPROMs, are recurrent problems. Additionally, improper installations or missing components, such as EPROMs or ICs, are common diagnostic discoveries.

Repair Approach

Repairs typically involve replacing or correctly installing faulty components such as EPROMs, processors, ICs, and crystals. Damaged bus bars or pins are either repaired or replaced with jumpers to restore circuit continuity. Preventive maintenance includes updating all electrolytic capacitors and enhancing mechanical robustness with wire jumpers and RTV where necessary. In some cases, issues are resolved by adjusting settings or cleaning and resoldering connections to eliminate interference.

Testing & Quality

Post-repair, units are thoroughly tested and often subjected to extended burn-in periods ranging from overnight to several days to verify reliability and stability. Adjustments to settings, such as contrast and brightness, are made to optimize performance. In cases where customer issues cannot be duplicated, preventive measures and careful monitoring during testing are employed to validate repairs.

Service and repair your broken Anorad part


We can repair your Anorad model 62137 in our facility. Let our skilled technicians get your Anorad back in operation quickly.


Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.

Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.

Step 3 - Ship or mail the box to the address listed on the RMA.
