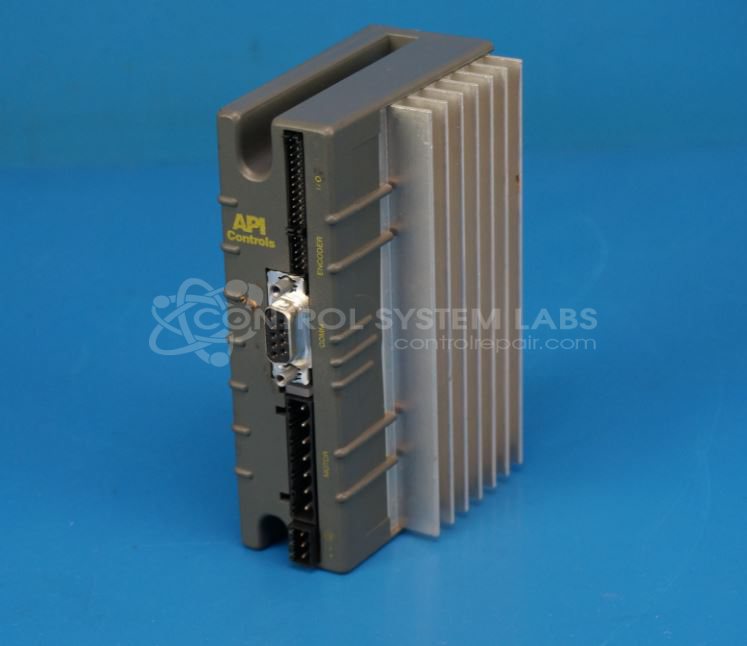

Api Controls DM-224I-A Intelligent Microstep Drive
Repair
Repair Price: $ 800.00
Purchase
CSL Part Number: 20755
Product Overview: An intelligent microstep drive for controlling stepper motors in industrial automation and paper-handling equipment. It delivers precise microstepping motion control and supports PC-based configuration and diagnostics via dedicated software, with status indicated by an onboard LED.
Category: Servo Controls
Manufacturer: Api Controls
Manufacturer Part Number: DM-224I-A
Also Known As(AKA): DM-224I
This repair requires your software.
Common Failures
Several recurring issues have been observed with this product. A common symptom is power-up problems, where units do not initialize properly or the LED indicator displays incorrect colors. Another frequent issue is a lack of communication with PCs when connected via specific software.
Repair Approach
For units experiencing power-up problems that do not initialize, short circuits were diagnosed, and specific components were replaced to restore functionality. In cases of communication failure, extensive testing and reconfiguration were attempted, including the installation of communication chips and the use of specialized software. Some units were found to be Beyond Economic Repair, while others were successfully restored by establishing software communication.
Testing & Quality
Testing methods included applying power and monitoring for correct LED indicators and overheating. Units were also connected to motors to verify communication capabilities through software. Some units could not be repaired due to persistent issues with internal communication systems.
Service and repair your broken Api Controls part
We can repair your Api Controls model DM-224I-A in our facility. Let our skilled technicians get your Api Controls back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
