Repair Price: $ 2,994.00
Purchase
CSL Part Number: 109768

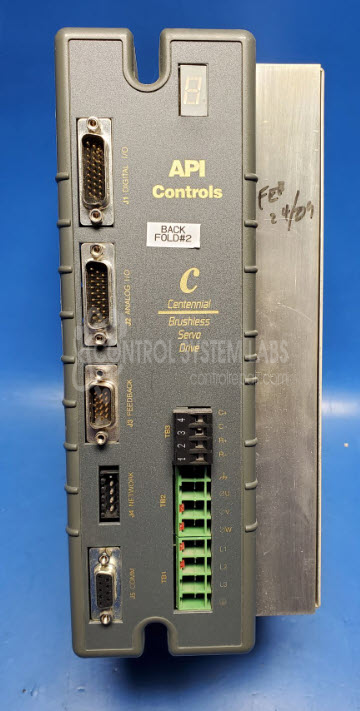

Product Overview: The Centennial PS-3320C-R-C1 is a brushless servo drive that converts 230 VAC input power to 325 VDC output at 20 amps for controlling brushless servo motors. Manufactured by Api Controls (formerly Kollmorgen), it features resolver feedback compatibility and is commonly used in automated manufacturing equipment, packaging machinery, and precision motion control applications. The drive includes integrated motor overtemperature monitoring via PTC thermistor and requires APImate software for configuration and diagnostics.
Category: Servo Controls
Manufacturer: Api Controls
Alternate Manufacturer Names: Kollmorgen
Manufacturer Part Number: PS-3320C-R-C1
Also Known As(AKA): PS-33xx
Other Synonyms: Kollmorgen
Please include copies of manuals and wiring diagrams, error messages and motor info when submitting an RMA request.
Common Failures
Units received for service have exhibited over-temperature and feedback errors. Components that may contribute to these issues include opto-isolators, capacitors with elevated equivalent series resistance (ESR), and rechargeable batteries with low voltage readings.
Repair Approach
The repair process typically involves replacing defective components such as opto-isolators and capacitors to address ESR-related concerns. Preventative replacement of additional capacitors may also be performed. When battery-related issues are identified, batteries are replaced as needed. Missing hardware, such as screws on fan covers, is also addressed during service.
Testing & Quality
Diagnostic testing is performed to identify faults such as motor over-temperature errors. Testing is conducted with available equipment; however, comprehensive functional verification may be limited without application-specific software and motor cabling. We recommend that final testing and verification be conducted in the customer's application to confirm proper operation.
Service and repair your broken Api Controls part
We can repair your Api Controls model PS-3320C-R-C1 in our facility. Let our skilled technicians get your Api Controls back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
