Repair
Repair Price: $ 1,384.00
Purchase
CSL Part Number: 25262

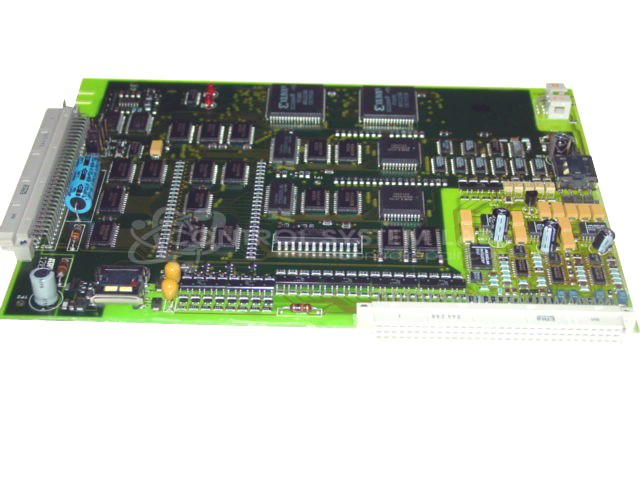

Product Overview: The Multronica Position Card (M Board) is an analog input control board used in Arburg plastic injection molding machines equipped with Multronica or Hydronica control systems. It processes transducer signals for position feedback and machine control. The board features operational amplifiers (TL084), an 8-bit DAC (AD7528), and a 12-bit SAR ADC (MAX170) for signal conditioning and conversion. It is commonly found in machines requiring precise monitoring of hydraulic or mechanical positions during the molding cycle.
Category: Control Board
Manufacturer: Arburg
Alternate Manufacturer Names: 10-00.044 on PWB
Manufacturer Part Number: 120.53
Series: Multronica Hydronica
Also Known As(AKA): 2.5278
Other Synonyms: 10-00.044 on PWB
Please indicate issue when sending for repair.
Common Failures
This unit type may exhibit erratic operation. CSL evaluation has identified failures in specific circuit board components that can contribute to these symptoms.
Repair Approach
The repair process includes diagnostic testing and replacement of affected integrated circuits and capacitors as needed. Inspection and cleaning of residue at analog input operational amplifiers is performed where applicable.
Testing & Quality
Following repair, the unit undergoes burn-in testing under load conditions. Testing includes verification of transducer inputs to confirm proper operation under standard conditions.
Service and repair your broken Arburg part
We can repair your Arburg model 120.53 in our facility. Let our skilled technicians get your Arburg back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
