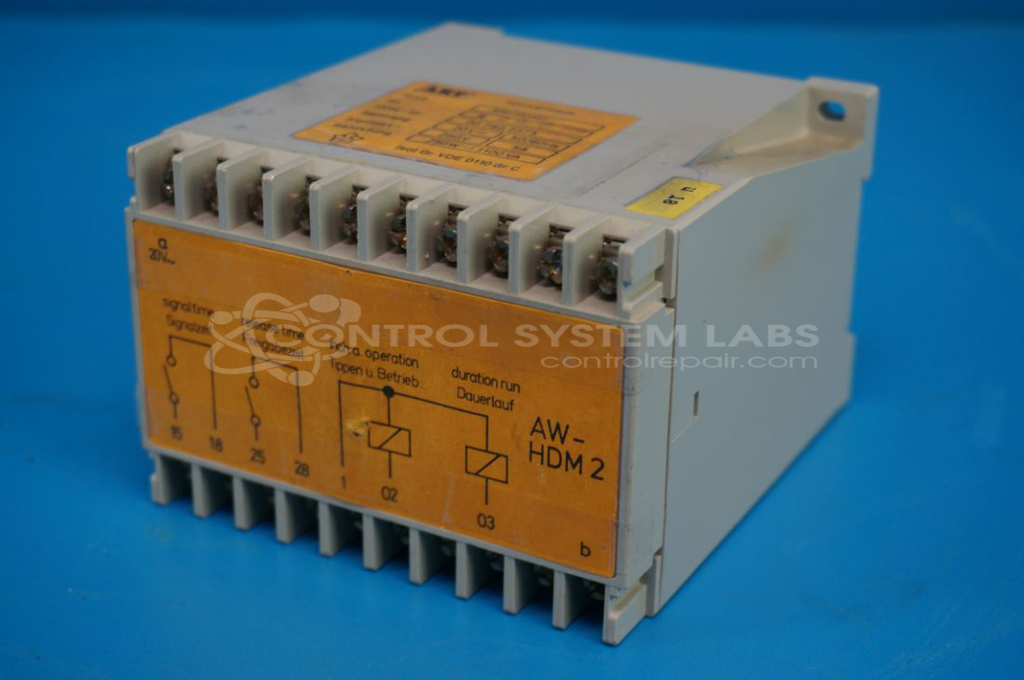

ART AW-HDM2 Heidelberberg Dual Relay Timer

Repair

Repair Price: $ 388.00

Repair Now

Purchase

https://controlrepair.com/web/image/product.template/66485/image_1920?unique=12ebfdc
  • Condition

Purchase Price: $ 0.00 $ 0.00 388.0 USD

$ 0.00

This combination does not exist.

Add to Cart

CSL Part Number: 82868
Product Overview: A rail-mounted dual relay timer module used in offset printing presses to control dampening (water roller) functions, such as engaging the water unit on a printing section. It features optocoupler-isolated inputs and relay outputs for timed sequencing of press operations.
Category: Timers
Manufacturer: ART
Manufacturer Part Number: AW-HDM2
Also Known As(AKA): HOCKENHEIM

Common Failures

Common issues reported include the unit not starting the water rollers. Another related problem identified was a blown fuse linked to a burnt terminal.

Repair Approach

Identified issues have been addressed by replacing faulty optocouplers and electrolytic capacitors as needed. Following component replacement, units are tested to verify functionality.

Testing & Quality

Each repaired unit undergoes thorough testing to verify that identified problems have been resolved. Testing includes a 40-minute burn-in test to confirm reliable operation following repair.

Service and repair your broken ART part


We can repair your ART model AW-HDM2 in our facility. Let our skilled technicians get your ART back in operation quickly.


Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.

Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.

Step 3 - Ship or mail the box to the address listed on the RMA.
