ATC 306E016A00PX 30 Minch Motorized Percentage Timer

Repair

Repair Price: $ 392.00

Repair Now

Purchase

https://controlrepair.com/web/image/product.template/46119/image_1920?unique=e7f17e1
  • Condition

Purchase Price: $ 0.00 $ 0.00 392.0 USD

$ 0.00

This combination does not exist.

Add to Cart

CSL Part Number: 27186

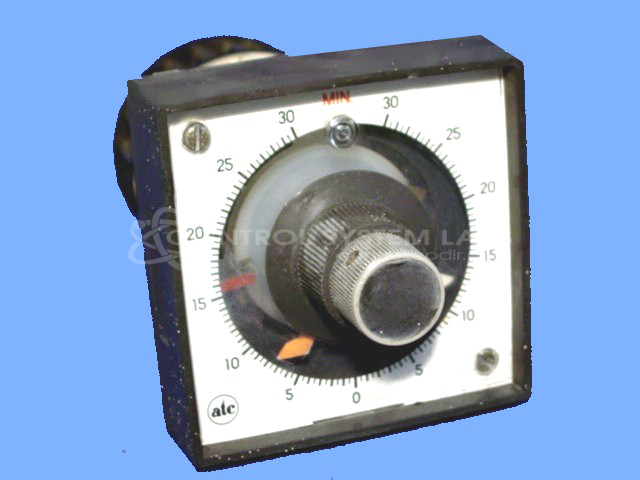

Product Overview: An electromechanical motorized percentage timer with a 30-minute cycle range, providing adjustable on/off timing intervals as a percentage of the total cycle. Features a dial pointer with trip lugs and relay-based motor switching. Used in paper mills and industrial process control for repeating cycle sequencing.
Category: Timers
Manufacturer: ATC
Manufacturer Synonyms: AUTOMATIC TIMING & CONTROLS
Manufacturer Part Number: 306E016A00PX

Common Failures

The primary issues encountered with this product include malfunctioning delays and faults related to the pointer and knob assembly. Additional problems frequently observed are related to the deterioration of the window component and the need for resoldering connections due to wire integrity issues.

Repair Approach

Repairs typically involve replacing faulty delay components and windows, resoldering connections where necessary, and addressing issues with the pointer and knob assembly. Cleaning and lubrication are performed to support the longevity of the unit. Adjusting timing for both On and Off delays is also part of the standard procedure to restore functionality.

Testing & Quality

After completing repairs, comprehensive testing is conducted to confirm operational reliability. This includes evaluating the switching motors and overall timing to verify that all components are functioning correctly. Maintenance checks, including cleaning and testing, are critical to maintaining product performance.

Service and repair your broken ATC part


We can repair your ATC model 306E016A00PX in our facility. Let our skilled technicians get your ATC back in operation quickly.


Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.

Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.

Step 3 - Ship or mail the box to the address listed on the RMA.
