Repair
Repair Price: $ 484.00
Purchase
CSL Part Number: 84365

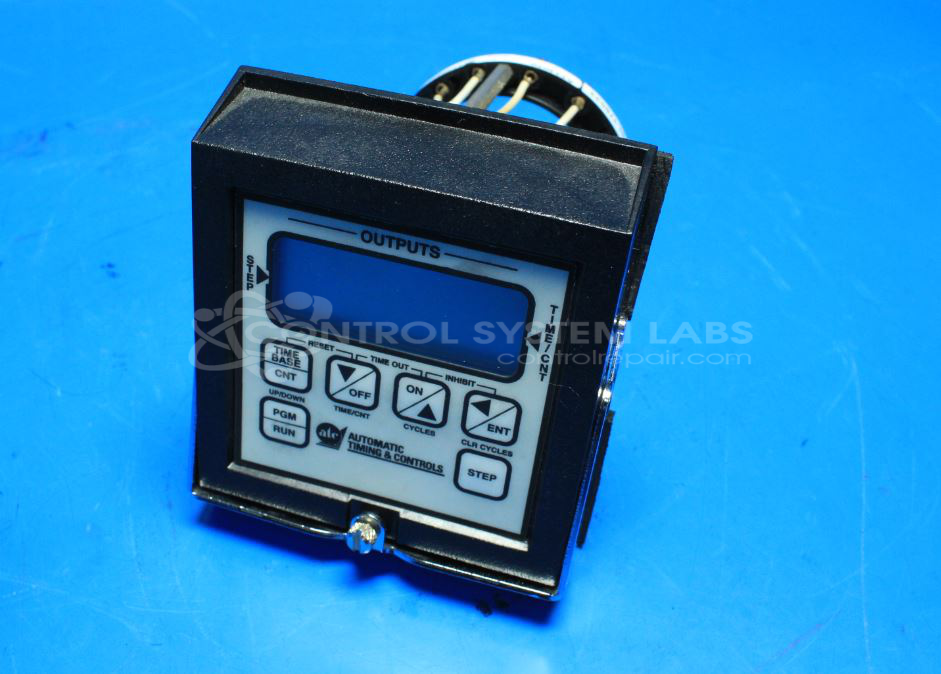

Product Overview: The ATC AT13070 (also known as Tenor 765-6-0142-0) is a programmable mini sequencer with 100 program steps. It controls multiple relay outputs in a timed sequence for industrial automation applications. The unit features a digital display, keypad programming interface, and 8 output channels. It supports cycle counting, external inhibit control, and various timing modes. Common applications include paper processing equipment and other automated machinery requiring sequential control operations.
Category: Timer / Counter
Manufacturer: ATC
Manufacturer Synonyms: AUTOMATIC TIMING & CONTROLS
Alternate Manufacturer Names: Tenor
Manufacturer Part Number: AT13070
Also Known As(AKA): Tenor 765-6-0142-0
Other Synonyms: Tenor
Common Failures
Units may fail to power on or display erratic behavior on the screen, such as displaying incorrect characters. Other issues may include the unit not retaining program changes and various forms of physical damage. Problems may involve components such as electrolytic capacitors, voltage regulators, EEPROMs, and connectors.
Repair Approach
Repairs may involve replacing components such as capacitors, voltage regulators, connectors, and EEPROMs. In some cases, adjustments are made to address loose connections or replace missing hardware. Unit reprogramming may be performed when necessary to restore function.
Testing & Quality
Units undergo diagnostic and burn-in testing to verify that functions, including display and output controls, operate as expected. Testing verifies that the unit can store and execute programs. Units that exhibit issues after repair attempts may be returned unrepaired if they are beyond economic repair or require unavailable parts.
Service and repair your broken ATC part
We can repair your ATC model AT13070 in our facility. Let our skilled technicians get your ATC back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
