Repair Price: $ 1,624.00
Purchase
CSL Part Number: 83125

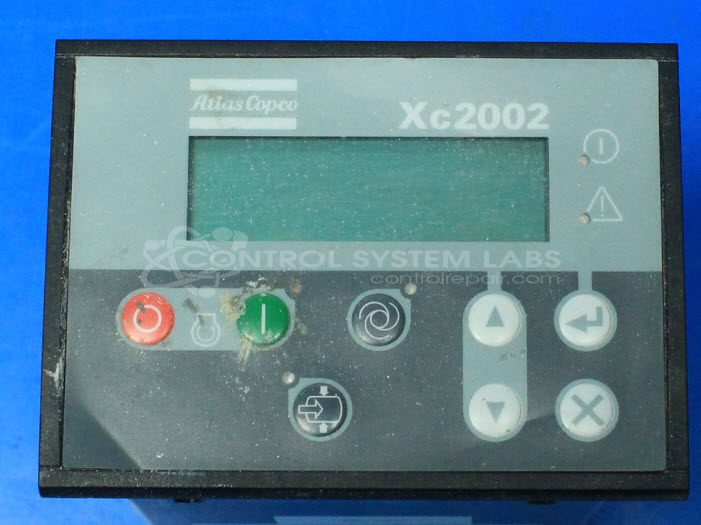

Product Overview: The XC2002 Control Unit is a microprocessor-based controller manufactured by Atlas Copco for portable diesel-powered air compressors, particularly the XAS series. It monitors critical engine parameters including fuel level and regulator pressure through analog inputs, then displays real-time data on an integrated LCD screen and controls compressor operation via relay outputs. The unit interfaces with the engine ECU and accepts operator input through a membrane keypad. It operates on 12-24VDC and features a multi-board internal architecture with switching power supply, signal multiplexing, and multiple relay outputs for load control.
Category: Operator Interface
Manufacturer: Atlas Copco
Manufacturer Part Number: 1604 9516 00 - Xc2002
Keyboard replacement additional.
Common Failures
Common issues reported with these units include screen malfunctions, fuel level reading inaccuracies, and intermittent operation. Contributing factors may include component degradation or corrosion affecting internal connections.
Repair Approach
Our repair process involves inspection and evaluation of the unit to identify faulty components or connection issues. Repairs may include component replacement, re-soldering of connections, and cleaning of affected areas. Each repair is based on the specific findings during evaluation.
Testing & Quality
Following repair work, units are tested to verify functionality. Testing procedures include power-on verification, functional checks of displays and inputs, and operational testing under various conditions. Our goal is to return units in serviceable condition consistent with our repair standards.
Service and repair your broken Atlas Copco part
We can repair your Atlas Copco model 1604 9516 00 - Xc2002 in our facility. Let our skilled technicians get your Atlas Copco back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
