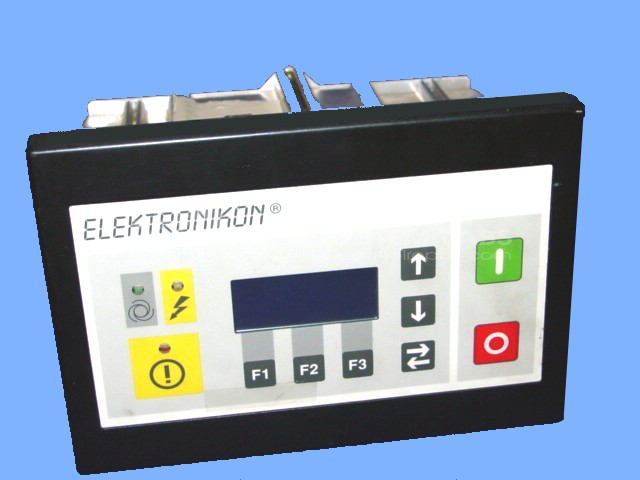

Atlas Copco 1900-0700-04 Elektronikon Compressor Controller

Repair

Repair Price: $ 1,244.00

Repair Now

Purchase

https://controlrepair.com/web/image/product.template/43310/image_1920?unique=b945da0
  • Condition

Purchase Price: $ 0.00 $ 0.00 1244.0 USD

$ 0.00

This combination does not exist.

Add to Cart

CSL Part Number: 24274
Product Overview: An electronic operator interface and control module for industrial air compressors. It manages load/unload operation, monitors setpoints, and displays system status via an LCD and keypad. Features relay outputs, a communication port, and nonvolatile memory for configuration retention, with an expander base for additional I/O.
Category: Operator Interface
Manufacturer: Atlas Copco
Manufacturer Part Number: 1900-0700-04
Series: Electronikon Compressor Controller

Common Failures

Common issues reported with these units include failure to load, unresponsive communication, and data loss or corruption. Intermittent shutdowns, improper date/time retention, and display failures have also been observed. These issues can be related to components such as relays, main processors, timekeepers, and low voltage electrolytic capacitors.

Repair Approach

Repairs may involve replacing components such as relays, main processors, timekeepers, and low voltage electrolytic capacitors in the power supply. Units are tested after component replacements. In cases of memory issues, components like NVRAM and EEPROM may need replacement, which would require customer reconfiguration of the unit after return.

Testing & Quality

After repairs, units undergo testing procedures, which may include extended burn-in tests, to evaluate the reported issues. Specific communication tests might be deferred to the customer if suitable equipment or software is unavailable at our facility. Units determined to be Beyond Economic Repair (BER) due to severe component failure can be returned per customer request or recycled here at no charge.

Limited Repair

The Atlas Copco part number is only available as a limited repair at our facility. Repairs to this item may be limited due to several reasons:

  • Availability of parts
  • Less than 100% test ability due to required support equipment

To have us attempt a repair on your Atlas Copco part follow these steps:

Step 1 -
Click the Repair Now button above to add the part and complete the RMA form.
Step 2 - Print the RMA form that is sent to your email, and put it in the box with the parts for repair.
Step 3 - Mail the box to the address on the RMA.

After we receive your item, we will perform an inspection and an authorization to repair will be sent for your approval. Work will begin after your authorization is received.
