CSL Part Number: 83494

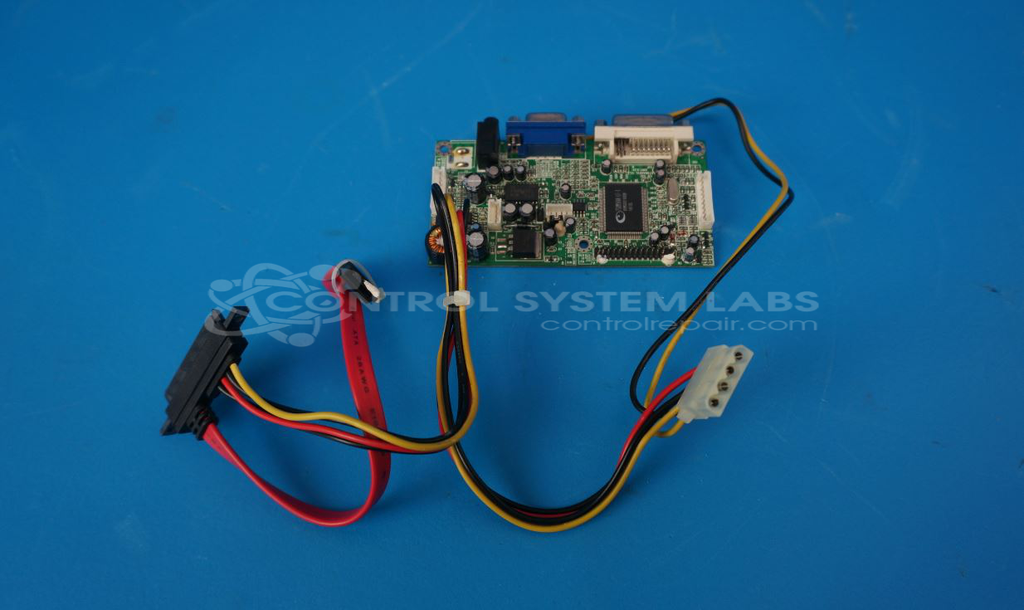

Product Overview: The KT56AKDVL is a universal LCD video interface board manufactured by AU Optronics. It serves as a driver board that converts video signals (such as VGA) to LVDS output for controlling LCD panels in industrial displays and control systems. This discontinued board features a standard power supply section and LCD connector interface, making it compatible with various LCD configurations. It is commonly found in CNC control panels and industrial HMI applications where display control is required.
Category: Video Card
Manufacturer: AU OPTRONICS
Manufacturer Part Number: KT56AKDVL-V1.3(56AK)

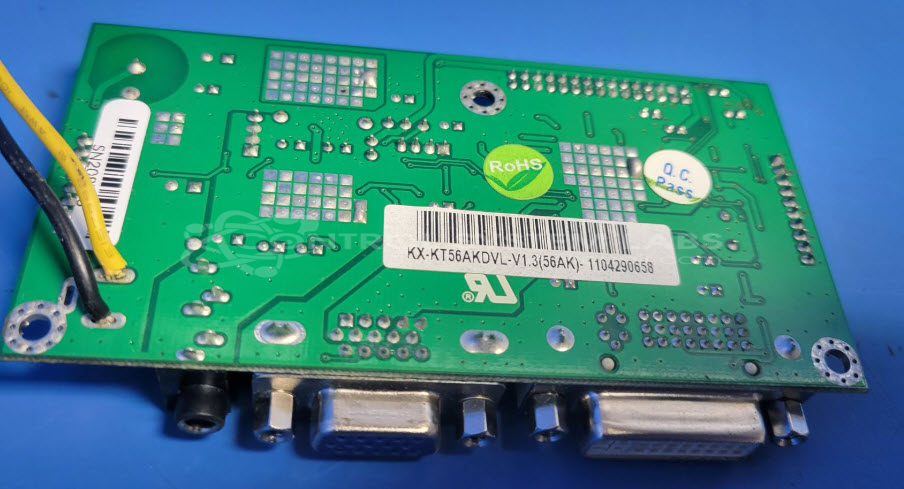

Also Known As(AKA): KX-KT56AKDVL
Common Failures
Common issues include power-related component damage and units that are non-functional in operation. Specific cases have shown problems with VGA output and minor capacitor deterioration.
Repair Approach
Our repair process includes testing and evaluation to identify faulty components such as motherboards and video interface boards. In some cases, obsolete parts may require sourcing from external suppliers. Once the unit is received and reviewed, we can provide a quotation before any repair work begins. Component replacement or repair may be recommended based on the evaluation findings.
Testing & Quality
Our testing procedures include power checks, signal testing, and video analysis to verify performance standards. Components undergo detailed inspection and testing to confirm functionality before return to service.
Service and repair your broken AU OPTRONICS part
We can repair your AU OPTRONICS model KT56AKDVL-V1.3(56AK) in our facility. Let our skilled technicians get your AU OPTRONICS back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
