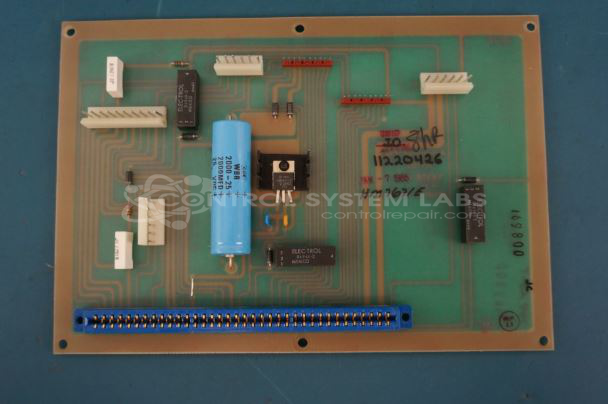

Automated Packaging Systems 58378 C1 H-100-D Power Supply Board

Repair

Repair Price: $ 336.00

Repair Now

Purchase

https://controlrepair.com/web/image/product.template/103090/image_1920?unique=fa49059
  • Condition

Purchase Price: $ 0.00 $ 0.00 336.0 USD

$ 0.00

This combination does not exist.

Add to Cart

CSL Part Number: 67725
Product Overview: A power supply board that provides rectified and regulated DC voltages to automated bagging and packaging machines. Using diodes, voltage regulators, and relays, it powers control functions such as bag feed alignment, open/load positioning, and seal point adjustment on tabletop packaging systems.
Category: Power Supply
Manufacturer: Automated Packaging Systems
Manufacturer Synonyms: A.P.S. APS
Manufacturer Part Number: 58378 C1
Also Known As(AKA): 58379A1

Common Failures

Some units experienced alignment issues where the bag did not align to the open or loading position, and the seal point adjustment was unresponsive. This was primarily due to broken solder joints. Other cases showed no obvious external problem but were found to have internal component issues such as shorted diodes, failed regulators, and damaged circuit board traces.

Repair Approach

Repairs for alignment issues involved resoldering broken solder joints and inspecting related components such as relays, regulators, and diodes. For units with no externally stated problems, repairs included resoldering connectors, repairing damaged traces, and replacing faulty components. Testing procedures involved verifying the operation of all relays and components using specialized equipment.

Testing & Quality

Each repaired unit underwent thorough testing to confirm the operation of all electrical components. The processes ensured that relay functions, rectification, and regulation systems were checked, verifying restored functionality and performance.

Service and repair your broken Automated Packaging Systems part


We can repair your Automated Packaging Systems model 58378 C1 in our facility. Let our skilled technicians get your Automated Packaging Systems back in operation quickly.


Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.

Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.

Step 3 - Ship or mail the box to the address listed on the RMA.
