Repair
Repair Price: $ 1,024.00
Purchase
CSL Part Number: 23181

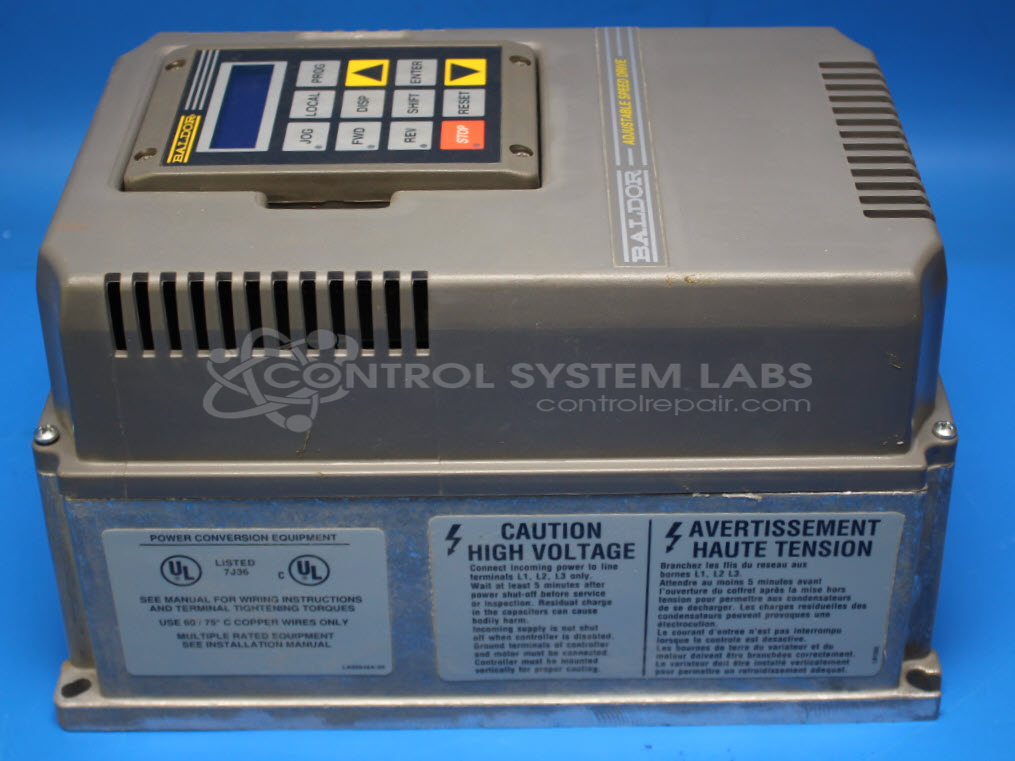

Product Overview: The Baldor ID15H205-E is a 5 HP, 230VAC adjustable speed drive from the 15H Series, designed to control AC motor speed and torque in industrial applications. It provides variable frequency output to regulate three-phase induction motors commonly found in paper processing equipment, conveyors, pumps, and HVAC systems. The drive features a digital display for parameter programming and monitoring, microprocessor-based control circuitry, and IGBT power modules for efficient motor control. It operates from single-phase 230VAC input and includes integral cooling fan and protection circuits.
Category: AC Motor Controls
Manufacturer: Baldor Electric
Manufacturer Synonyms: ABB
Manufacturer Part Number: ID15H205-E
Series: 15H Series Inverter Control
Common Failures
The most frequent issues with the unit involved defective components such as capacitors, resistors, and microcontrollers. Units often experienced power failures resulting in non-functional displays and inability to power on. In several cases, internal damage rendered the units beyond economic repair (BER).
Repair Approach
In several cases, defective components such as fans, capacitors, batteries, and resistors were replaced. Where components were replaced and additional cleaning was performed, units were restored to working order. However, when significant damage such as burnt circuits and missing board traces was present, repair was not feasible.
Testing & Quality
Repaired units underwent testing, including extended run time with motors to confirm stability and functionality. Successfully restored units showed no power or display issues post-repair.
Service and repair your broken Baldor Electric part
We can repair your Baldor Electric model ID15H205-E in our facility. Let our skilled technicians get your Baldor Electric back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
