Repair Price: $ 2,680.00
Purchase
CSL Part Number: 65137

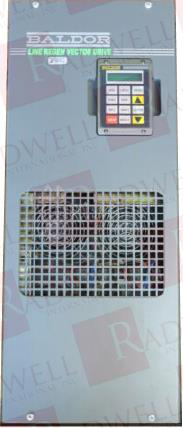

Product Overview: The Baldor ZD22H410-EL is a 10HP, 460V AC flux vector drive from the 22H Line Regen series. It provides regenerative braking capability and precise motor control for industrial applications requiring dynamic speed and torque management. This drive features advanced flux vector control for improved motor performance across varying loads. Common applications include paper processing machinery, material handling systems, and other industrial equipment requiring controlled acceleration, deceleration, and energy recovery. The unit utilizes IGBT power modules and high-voltage bus capacitors to manage power conversion and motor operation.
Category: AC Motor Controls
Manufacturer: Baldor Electric
Manufacturer Synonyms: ABB
Manufacturer Part Number: ZD22H410-EL
Series: 22H Line Regen AC Flux Vector Control
Common Failures
Common symptoms for this product include blown fuses and arcing in a specific corner, leading to a failure to power up. A short in the IGBT and an open bus capacitor are frequently identified in these situations.
Repair Approach
The repair typically involves the replacement of defective components such as the IGBT and bus capacitors. Component upgrades may be implemented where appropriate for reliability. The process includes diagnostic testing to identify component failures and determine the scope of repair work needed.
Testing & Quality
Post-repair, the unit undergoes testing with a load to confirm proper operation. Successful completion of testing validates the repair and functionality of the product.
Service and repair your broken Baldor Electric part
We can repair your Baldor Electric model ZD22H410-EL in our facility. Let our skilled technicians get your Baldor Electric back in operation quickly.
