CSL Part Number: 87298

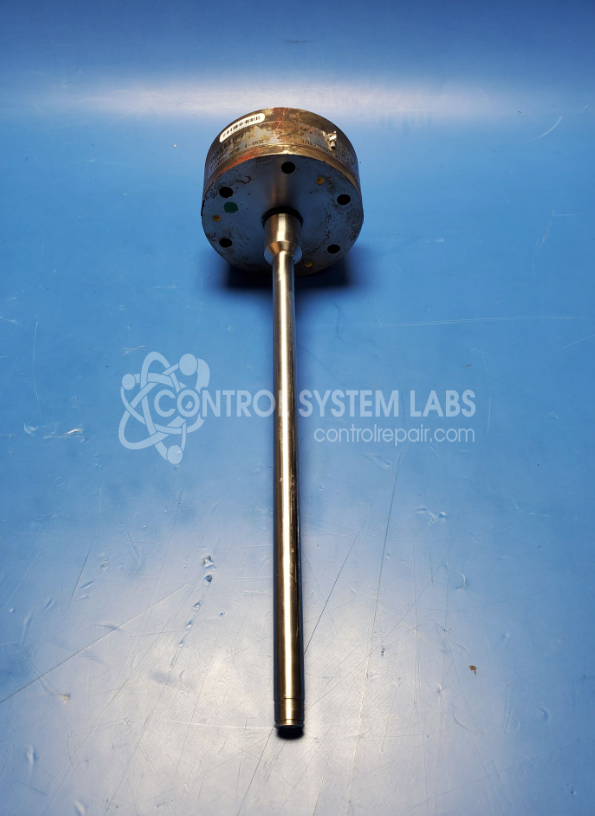

Product Overview: The Balluff BTL7-E500 is a magnetostrictive linear position transducer that provides non-contact measurement of absolute position. It operates by detecting the position of a magnetic float or slider along a waveguide rod. This transducer offers a 500mm (approximately 20-inch) measuring range with outputs configurable for 4-20mA analog or digital protocols like SSI. Common applications include hydraulic cylinder position monitoring in mobile equipment, injection molding machines, and industrial automation systems. The SR32 designation indicates it features a specific electrical interface and housing configuration for harsh industrial environments.
Category: Transducer
Manufacturer: Balluff
Manufacturer Part Number: BTL1AEH BTL7-E500-M0125-K-SR32
Series: BTL1 Linear Transducer
Common Failures
This device may experience issues with limited displacement tracking (LDT) functionality, where the output span can become restricted.
Repair Approach
The repair process typically involves replacing specific components, cleaning the device, and reseating internal connections. A key focus is on recalibrating the unit to address output inaccuracies.
Testing & Quality
After repairs, the device is reset to factory defaults with calibration settings restored to target an output range of 4-20 mA and full displacement tracking capabilities. Testing is performed to verify that recalibration has restored proper functionality.
Repair your broken Balluff part
We can repair your Balluff model BTL1AEH BTL7-E500-M0125-K-SR32 .
Please note: our repair turnaround time may be longer than our standard lead times for this item.
